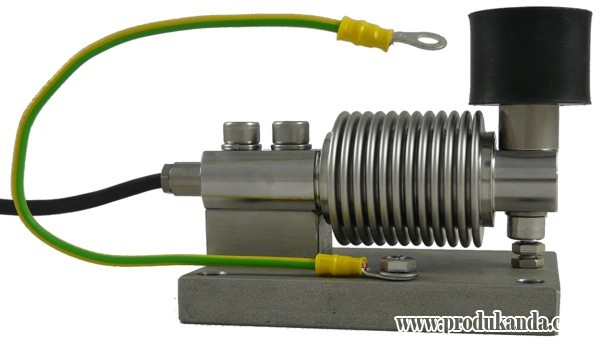

WEIGHING UNIT for Load Cell model F1.
Used in weighing tanks, silos and hoppers.
Nominal loads from 2,5 kg to 200 kg
Made of stainless steel AISI 304.
The weighing unit is provided with an ELASTOMER bearing  to preserve excellent features even in event of settlings, thermal dilation, positioning error, transverse thrusts and  deformations or vibrations of structures.

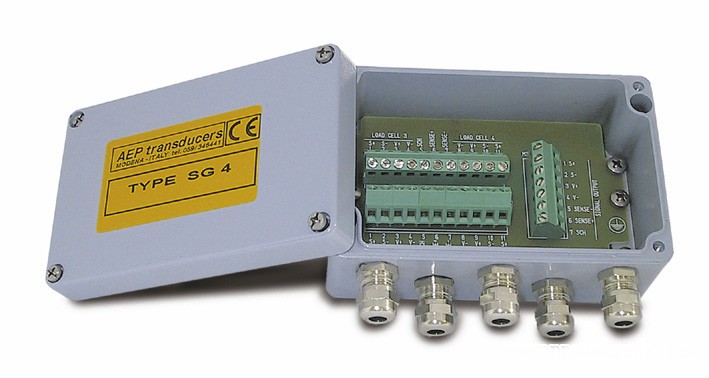

SG4: Junction box to perform the parallel of multiple load cells.

TA4: Analog Transmitter to connect several load cells in parallel and remote transmitting the measuring signal voltage (± 10V) or current (4-20 mA) to the PLC or more advanced systems.
