Excellent metrological features stated by the Metrological Research National Institute (I.N.RI.M.).
High stability given by monolithic structure.
Structure optimization thanks to the F.E.M. design.
Off-center loads compensation ±0.005% F.S.
Low sensitivity to supporting surfaces ±0.002% F.S.
Easy application for tension and compression.
Easy to handle thanks to its light weight (1MN about 36kg).
 |

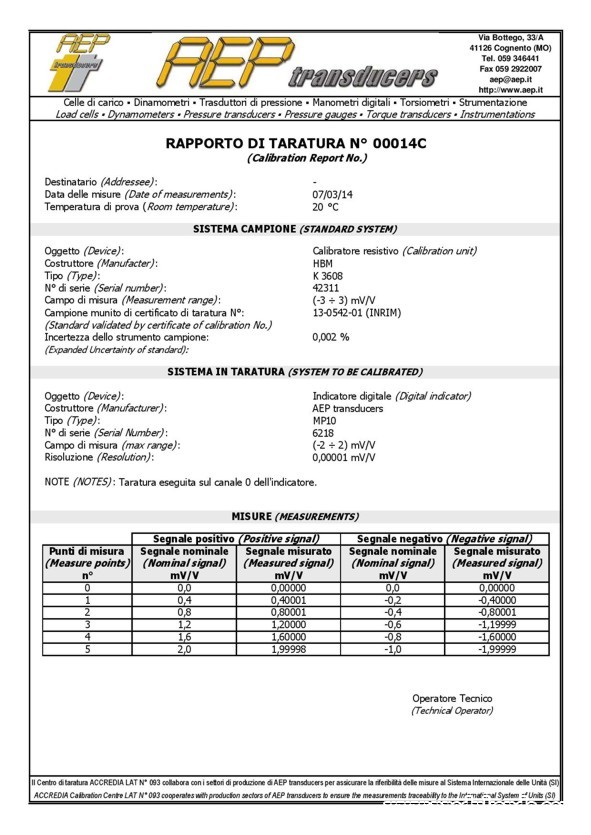

Calibration Report COMPRESSION Calibration Report TENSION |
|
ACCREDIA certificate COMPRESSION ACCREDIA certificate TENSION ACCREDIA certificate BIDIRECTIONAL |
 |

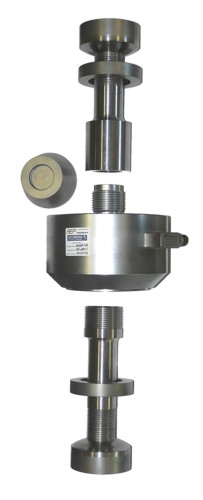

For COMPRESSION applications Loading head (TIC) Load base Tension screw for TENSION applications |
 |
For COMPRESSION applications Loading head (TIC) For TENSION applications No. 2 rods with ball joints |
 |
Aluminum cases for transport |
