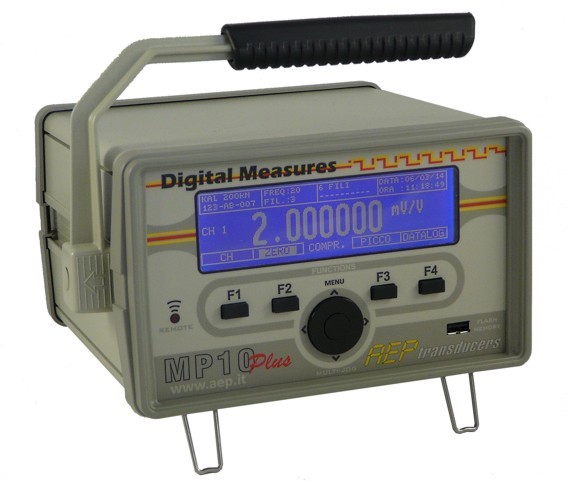

Main features are:
Graphic display of large size and high resolution with the ability to change the contrast by program
Resolution ±2.000.000 divisions (K2 Version) or ±200.000 divisions (Standard Version).
Acquisition frequency from 2.5Hz to 4800Hz
Type of transducers that can be managed: Force, Weight, Pressure, Torque and Displacement
Selection of numerous units of measurement for each of the type of transducer and with the measurement in mV/V and in Divisions
Internal Data logger by using an non-volatile memory that can store up to 130,000 measurement points at a maximum speed of 4800 points for second
External Data Logger that uses a usual USB Flash Memory for easy portability of data to a PC
Infrared remote control (optional) for remote functionality (eg manual recordings, ZERO function, HOLD function, etc.)
ZERO, HOLD and PEAK functions.
Clock-Calendar function with date and time
24 column Printer (option) connected to the serial port through which you can print out the measurement points with the indication of the company data that performed the measurement.
Auto-calibration function, programmable by the user, to minimize errors in temperature of the amplification chain and the A / D converter (reference for a guaranteed change of 1ppm / ° C).
Internal reference Channel for the verification and control of the consistency of the measurements
USB communication port through which you can transfer the measures in real time to a PC at the maximum possible speed (4800Hz)
RS232 Serial communication port
