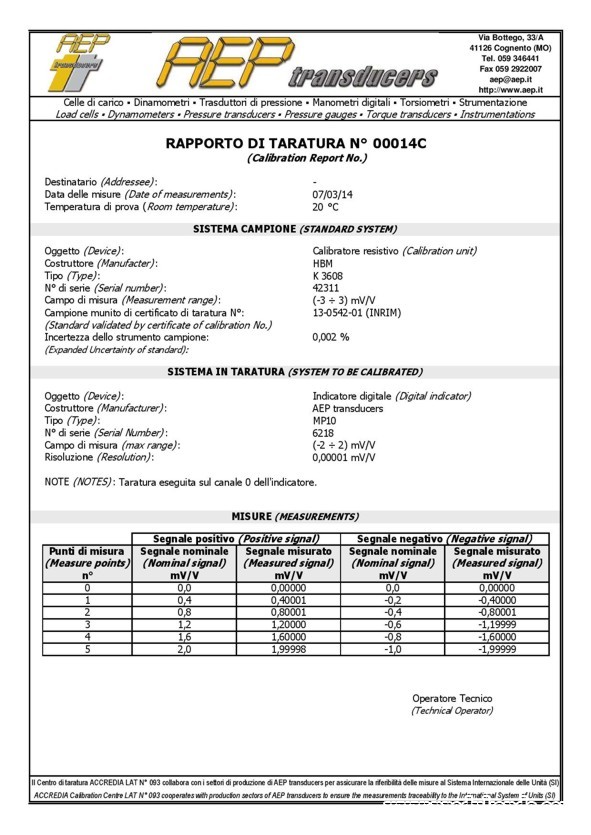

Calibration Report COMPRESSION Calibration Report TENTION |
 |
Joints to be used for COMPRESSION application Loading head (TIC) Spherical loading head (CTS) |
 |
Joints to be used for TENSION application. Knuckle joints (ACCEM) |
 |

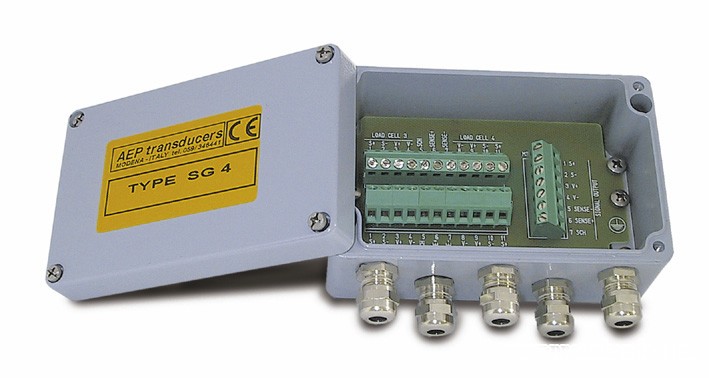

SG4: Junction box to perform the parallel of multiple load cells. TA4: Analog Transmitter to connect several load cells in parallel and remote transmitting the measuring signal voltage (± 10V) or current (4-20 mA) to the PLC or more advanced systems. |
