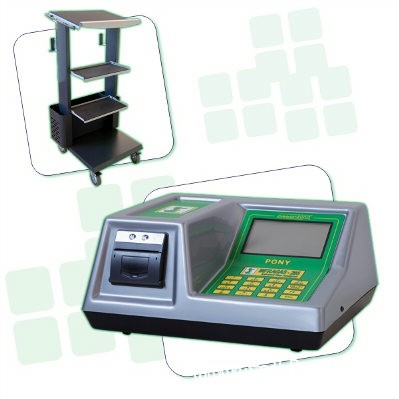

Automotive exhaust gas analyser
OIML Classe 00 - BAR 97 - MID
Measure of: CO, CO2, HC, O2, RPM
Calculated: CO COrr., Lambda
Automatic calibration
Auto-zero setting
Warm-up time: 2 minutes
Windows software for setup and calibration
LCD screen with backlight
Alphanumeric keyboard with 16 keys
Enabled for universal rpm counters
Enabled for OBD and e-OBD
Serial output: RS-232
Power supply: 220V AC
Direct connection to speed tester
Automatic condensate drain system
Operating tempereture range: from +5 to 40 °C.
Approvals:
OM00620EST003c/NET2
MID: SK 14 - 002 MI - 010
| Power and size |
|
| Power supply | 12V DC or 220V AC |
| Weight | 3 Kg |
| Dimensions (LxHxP) |
344x160x270mm |
| Type of use |
|
| Cars | YES |
| Motocycles | NO |
| Measure | Range | Resolution |
| CO | 0 ÷ 10 Vol% |
0,001 Vol% |
| CO2 |
0 ÷ 20 Vol% |
0,01 Vol% |
| HC |
0 ÷ 15000 ppm |
1 ppm |
| O2 |
0 ÷ 25 Vol% |
0,01 Vol% |
| CO Corr. |
0 ÷ 15 Vol% |
0,01 Vol% |
| Nox |
0 ÷ 5000 ppm |
1 ppm |
| Lambda |
0,5 ÷ 1,5 |
0,01 |
| RPM |
0 ÷ 9999 rpm |
1 rpm/1′ |
| Oil temperature |
0 ÷ 150 °C |
0,1 °C |
| Internal temperature |
0 ÷ 50 °C |
0,1 °C |
| Environmental pressure |
800 ÷ 1060 mbar |
1 mbar |
