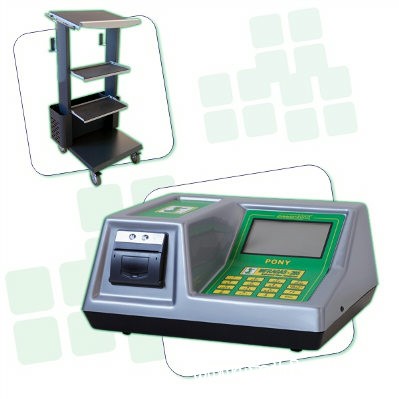

INFRAGAS-305 Cars and motocycle exhaust gas analyser OIML Classe 00 - BAR 97 - MID Measure of: CO, CO2, HC, O2, RPM Calculated: CO COrr., Lambda Automatic calibration Auto-zero setting Warm-up time: 2 minutes Windows softwrea for setup and calibration
LCD screen with backlight Alphanumeric keyboard with 16 keys Enabled for universal rpm counters Enabled for OBD and e-OBD Serial output: RS-232 Power supply: 220V AC Direct connection to speed tester Automatic condensate drain system Kit probes for motocycles Pneumatic valve for automatic probe and filters cleaning Operating tempereture range: from +5 to 40 °C.
Approvals: OM00620EST004c/NET2 OM00621EST001cm/NET2 MID: SK 14 - 002 MI - 010
|
||||||||||||||
| Measure | Range | Resolution |
| CO | 0 ÷ 10 Vol% |
0,001 Vol% |
| CO2 |
0 ÷ 20 Vol% |
0,01 Vol% |
| HC |
0 ÷ 15000 ppm |
1 ppm |
| O2 |
0 ÷ 25 Vol% |
0,01 Vol% |
| CO Corr. |
0 ÷ 15 Vol% |
0,01 Vol% |
| Nox |
0 ÷ 5000 ppm |
1 ppm |
| Lambda |
0,5 ÷ 1,5 |
0,01 |
| RPM |
0 ÷ 9999 rpm |
1 rpm/1′ |
| Oil temperature |
0 ÷ 150 °C |
0,1 °C |
| Internal temperature |
0 ÷ 50 °C |
0,1 °C |
| Environmental pressure |
800 ÷ 1060 mbar |
1 mbar |
