- Dimensions: 35mm DIN-Rail
- Power Consumption: 6VA
- Voltage: 110:230V AC, 10:60V DC or 400V AC (Depending on model)
- Terminal Protection: IP20
- Sensitivity: 30mA - 30A
- Time Delay: 0-10 Second
Product Details

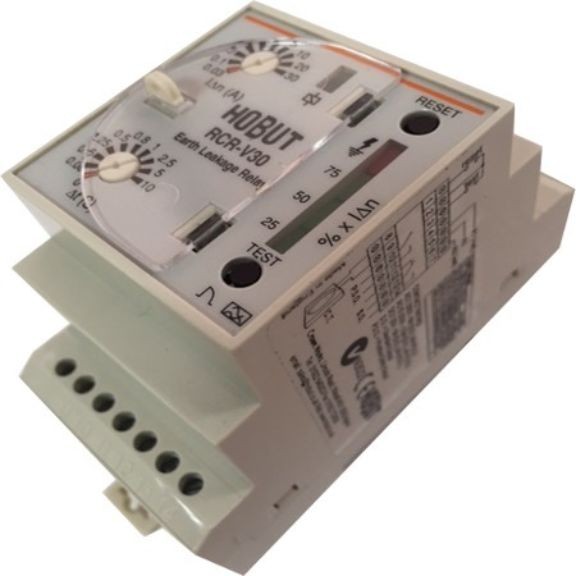

Camax are now supplying the Hobut RCR-V30 which is an Earth Leakage Relay used to montior earth leakage current and operate as a relay. The device can be used to shut down a system or operate an alarm.
Product Specification
- Supply Voltage (Un): 24, 115/230, 400V AC (85-115%) 12-125V DC (85-110%) 10-60V DC(90-110%)
- Power Consumption: 6VA
- Ambient Temperature: -20 to +55°C
- Relative Humidity: +95%
- Housing: UL94VO
- Flame Retardant
- Weight: 200g
- Mounting: 35mm Din Rail
- Terminal Conductor: ≤ 2.5mm2 stranded ≤ 4mm2 solid
- Output: 1 x SPNO relay 1 x SPDT relay
- Terminal Protection: IP20
- Approvals:IEC60755,60947,62020,61543
- N.B. 210mm toroids should not be used for sensitivity settings of less than 300mA
