With field replaceable sensors, the BTU700 can be easily field serviced as the need requires as all sensors can be supplied pre-calibrated to minimise downtime and keep the BTU700 operating. With metal connections instead of the plastic type, this is a very robust piece of field service equipment, and despite it's lower price tag, it is still packed with features designed to make the technician's life easier.
The BTU700 has an internal memory for up to 300 tests, and PC software is included to allow the operator to download test results to a PC for client reporting. The built in or interface allows the BTU700 to connect easily to an existing HP type IR printer for field based print outs. This flue gas analyser is supplied as a complete kit and includes O2, CO, CO2, draught, differential pressure, temperature, efficiency, excess air, 300 test memory, rechargeable battery pack, AC charger, 300mm dual hose gas sampling probe, water trap with filter cartridge, protective boot with magnetic holder, PC software package, USB cable, user manual, carrying case, calibration certificate.
Features:
O2, CO2, and CO
Efficiency
Excess Air
Draught
Gas and Air Temperatures
Differential Pressure
Magnetic Rubber Boot
"Boiler Room" design
Simple to Use
Rechargeable Battery Pack & AC Charger
Immediate Response Time
External Condensation Trap
300 Test Internal Memory
Windows Software Included\
All BTU700 Kits include: 300mm Dual Hose Probe (Gas, Draught, Temperature - All at Once) 10 Fuel / Oil types including Bio-Heat 5% Field Replaceable, Pre-Calibrated Sensors Large LCD display with Back Light Unbreakable Metal Connections Internal Memory and PC Software IR port

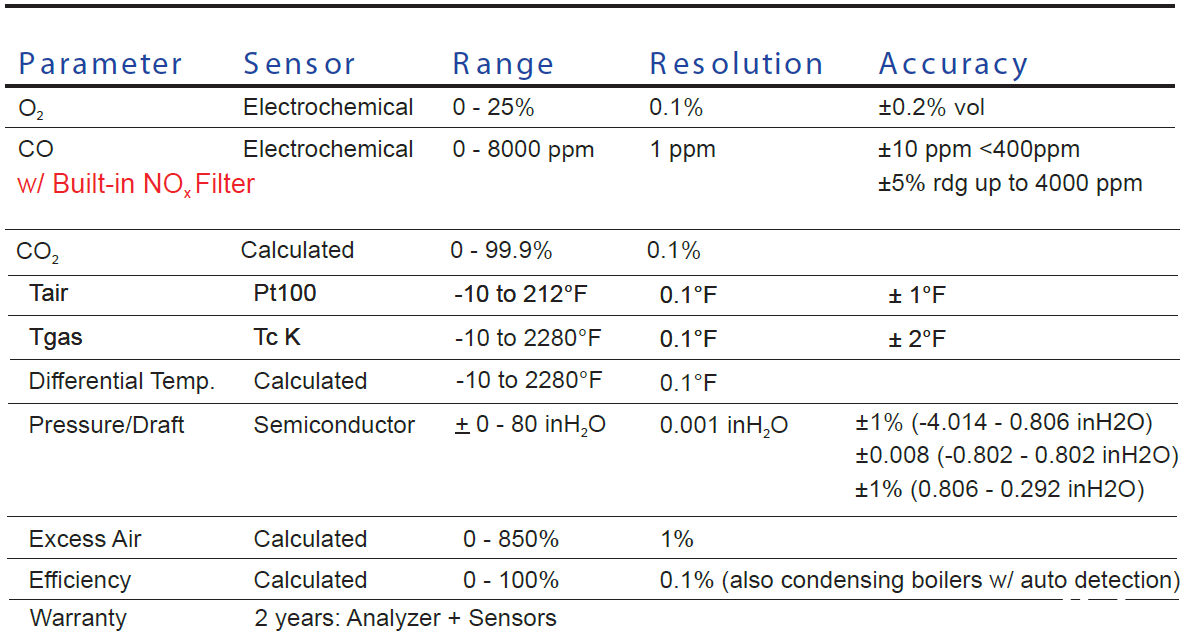

BTU700 Technical Specifications:
