| Product Specification | Description |
| Range |
-200.0 °C to 850.0 °C (-392 °F to 1562 °F) |
| Resolution | -200.0 °C to 850.0 °C: 0.1 °C -392.0 °F to 999.9 °F: 0.1 °F 1000 °F to 1562 °F: 1 °F |
| Accuracy |
-200.0 °C to -100.0 °C (-392 °F to -148 °F): ±2.0 °C (±4.0 °F) |
| LCD | 58 x 40 mm with backlight |
| Min/Max Reading | Yes |
| Auto Shut-Off | 17.5 min (selectable) |
| Hold Function | Yes |
| Stability Indicator | Yes |
| Input | Single (3-pin circular connector (switchcraft TA3F)) |
| Power Requirements | 3 ‘AA’ 1.5 V alkaline; >750 hours (without backlight) |
| Storage | -40 °C to 65 °C (-40 °F to 149 °F); 10 % to 90 % (non-condensing) |
| Dimensions & Weight | 175 x 97 x 42 mm (LxWxT), 267 g (without armor) ; 180 x 102 x 52 mm (LxWxT), 362 g (with armor) |
| Ingress Protection (With Probe Attached) |
IEC-529 IP54 for dust and water-resistant enclosures |
| CE Compliance | EN61326-1/A1: 1998 (EU EMC Directive) |
Order Information
|
Order No. |
Item |
| Meter | |

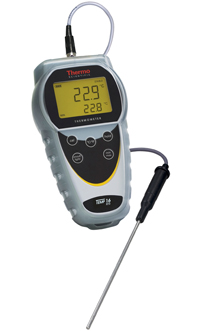

| TSTEMP16-RTD | Thermo Scientific single-input precision RTD thermometer with rubber armor/stand (probe not included) |
| Accessories | |
| HNDSFRKIT |
Hands-free kit for Thermo Scientific thermometers |
| Replacement Part | |
| ARMORTEMP | Rubber armor/stand for Thermo Scientific thermometers |
| RTD Probes | |
| ECPT56L | RTD Pt 100 probe. Shaft length: 200 mm; round-tip sensor: 3 mm diameter; -50 to 400 °C (for liquid measurement); cable length: 1.5 m |
| ECPT56C | RTD Pt 100 probe. Shaft length: 200 mm; round-tip sensor: 5 mm diameter; -50 to 400 °C (for contact measurement); cable length: 1.5 m |
| ECPT56P | RTD Pt 100 probe. Shaft length: 500 mm; penetration sharp sensor: 4 mm diameter; -50 to 400 °C (for semi-solid measurement); cable length: 1.5 m |
| ECPT56A | RTD Pt 100 probe. Shaft length: 200 mm; sensor tip: 4 mm diameter; -50 to 250 °C (for air measurement); cable length: 1.5 m |
| ECPT56L 1/5 DIN | RTD Pt 100 probe. Shaft length: 200 mm; round-tip sensor: 3 mm diameter; -50 to 400 °C; cable length: 1.5 m |
| ECPT56 TFE | RTD Pt 100 probe. Shaft length: 100 mm; round-tip sensor: 4 mm diameter; -50 to 200 °C; cable length: 1.5 m |
| ECPT56/500 | RTD Pt 100 probe. Shaft length: 500 mm; round-tip sensor: 6 mm diameter; -50 to 400 °C; cable length: 1.5 m |
| ECPT56/1000 | RTD Pt 100 probe. Shaft length: 1000 mm; round-tip sensor: 6 mm diameter; -50 to 400 °C; cable length: 1.5 m |
| ECTEM6TEM01R | 3-wire RTD Pt 100 temperature probe |
