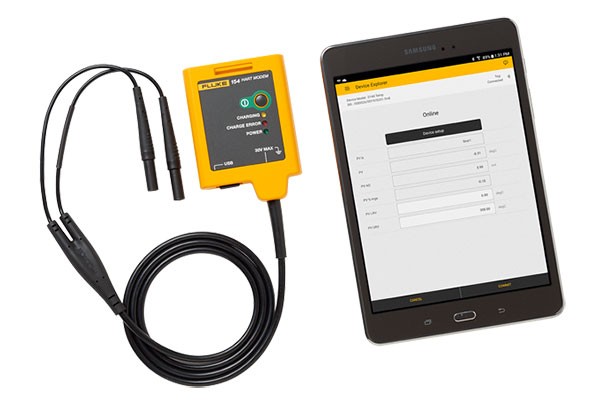

Fluke 154 HART Calibration Assistant
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
09-09-2016 09:58
Dapatkan Spesifikasi Harga
Fluke 154 HART Calibration Assistant Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
- Full HART Device Description (DD) support of all HART devices
- Configure HART devices
- Perform HART trim on HART devices when used with a Fluke 750 or 720 series calibrator
- Monitor device PV, SV, TV, QV and other measured HART variables
- Quarterly HART DD updates for free
- Convenient wireless connectivity to HART modem
- Easy to use, fast connect and view HART data
- Store HART device configurations
- Long range wireless communication up to 250 feet
| Tablet |
| Operating system |
Android 5.0 or newer |
| Processor |
ARM or Atom |
| Memory RAM |
1 GB |
| Memory ROM |
2 GB |
| Screen |
960x540 qHD |
| Communication port |
Bluetooth |
| HART Modem |
| Enclosure |
| Material |
High strength ABS Plastic |
| Dimensions |
10.16 x 2.5 x 6.9 cm (4 x 1 x 2.75 in) |
| Total unit weight |
0.16 kg (0.36 lbs) |
| Cables |
| HART cable length |
4 ft (1.2 m) |
| HART cable connectors |
Mini-Grabber |
| HART Interface |
| Interface |
Capacitive coupling |
| Output |
600 mVpp |
| Leakage |
< 10 uA |
| Connections |
Across loop resistor or HART field device |
| Specifications |
HART 4, HART 5, HART 6, HART 7 |
| HART physical layer spec |
HCF_SPEC-54 |
| Bluetooth |
| Specification |
Bluetooth v2.0 |
| Frequency |
2.4 GHz |
| Class 1 master distance |
275 ft (83.8 m) |
| Battery |
| Type |
Rechargeable Li-Ion |
| Life |
19 hours continuous use |
| Environmental |
| Operating temperature |
0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature |
-10 °C to 45 °C (-14 °F to 113 °F) |
| Humidity |
0% to 90% (non-condensing) |
