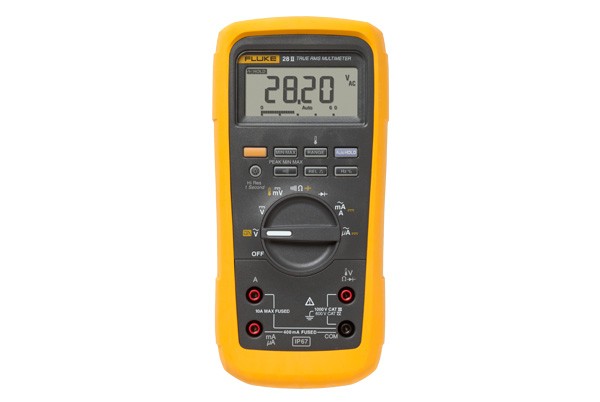

Fluke 28 II Rugged Digital Multimeter
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
15-09-2016 15:02
Dapatkan Spesifikasi Harga
Fluke 28 II Rugged Digital Multimeter Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
- Measure up to 1000 V AC and DC
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 μF capacitance range
- Frequency to 200 kHz
- Extended AC voltage bandwidth– 15 Hz to 20 kHz
- Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Resistance, continuity and diode test
- Min/Max and average recording to capture variations automatically
- Peak min-max
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- New – IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
- Designed to withstand 3 meter drop (with holster)
- Hi resolution 20,000 count display mode
- True-rms ac voltage and current for accurate measurements on non linear signals
- New – Backlit keypad buttons allow for easy visibility in lowlit areas
- Large display digits and 2 level bright white backlight for increased visibility
- Reversible holster for added protection when not in use
- Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
- Long battery life (800 hours)
- Relative mode to remove test lead resistance from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
- MSHA approval
| Accuracy Specifications |
| DC voltage |
Range |
0.1 mV to 1000 V |
| Accuracy |
0.05% + 1 |
| AC voltage |
Range |
0.1 mV to 1000 V |
| Accuracy |
0.7% + 4 |
| DC current |
Range |
0.1 μA to 10 A |
| Accuracy |
0.2% + 4 |
| AC current |
Range |
0.1 μA to 10 A |
| Accuracy |
1.0% + 2 |
| Resistance |
Range |
0.1 Ω to 50 MΩ |
| Display counts |
6000 |
| Capacitance |
1 nF to 9999 μF |
| Frequency |
0.5 Hz to 199.99 kHz |
| Temperature |
-200°C to +1090°C |
| Low pass filter (Measurement on VSD’s) |
Yes |
| Compliance |
CAT IV 600 V , CAT III 1000 V |
| IP rating |
IP 67 |
| Power |
Three AA batteries |
| Battery life |
800 hours |
| General Specifications |
| Display |
Bar graph/backlight |
Yes/Yes |
| Data storage |
Peak transient capture |
250 μS |
| Min/Max/Avg |
Yes |
| Reading hold |
Yes |
| Other features |
Relative readings (zero) |
Yes |
| Battery type |
Three AA batteries |
| Warranty and protection |
Safety rating |
CAT IV 600 V/CAT III 1000 V |
| Mine safety |
MSHA Approved |
| External protection |
Rubber holster |
| Drop test |
10 feet drop test |
| Dustproof/waterproof |
Yes, IP 67 rated |
| Warranty |
Limited lifetime |
| Size (H x W x L) with holster |
6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) |
| Weight with holster |
698.5 g (1.54 lb) |
