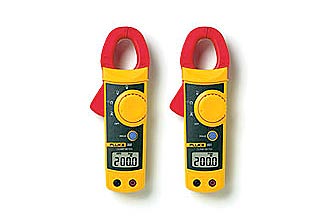

Fluke 322 Digital AC Clamp Meter
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
15-09-2016 15:47
Dapatkan Spesifikasi Harga
Fluke 322 Digital AC Clamp Meter Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
Fluke 322 Clamp Meter
| Specifications |
| Voltage DC |
Range / Resolution |
0 - 400 V / 0.1 V |
| Range |
0 - 600 V |
| Resolution |
1 V |
| Accuracy |
1% ± 5 counts |
| Voltage AC |
Range / Resolution |
0 - 400 V / 0.1 V |
| Range |
0 - 600 V |
| Resolution |
1 V |
| Accuracy |
1.2% ± 5 counts (50 - 400 Hz) |
| AC Response |
Averaging |
| Current AC |
Range / Resolution |
0 - 400 A / 0.1 A |
| Range |
0 - 40 A |
| Resolution |
0.01 A |
| Accuracy |
1.8% ± 5 counts (50 - 60 Hz) |
| Accuracy |
3.0% ± 5 counts (60 - 400 Hz) |
| AC Response |
Averaging |
| Resistance |
Range / Resolution |
0 - 400 Ω / 0.1 Ω |
| Accuracy |
1% ± 5 counts |
| Continuity |
<= 30 Ω |
| Environmental Specifications |
| Operating Temperature |
-10°C to +50°C |
| Storage Temperature |
-30 ºC to +60 ºC |
| Operating Altitude |
2,000 meters |
| Temperature De-rating |
Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC |
| Safety Specifications |
| Safety Rating |
IEC 1010-2-032, 600V CAT III |
| Mechanical and General Specifications |
| Size |
190 x 63 x 35 mm |
| Weight |
230 g |
| Warranty |
Two years |
| Battery Life |
100 hours typical (2 AAA carbon zinc) |
| Jaw Opening |
25 mm |
