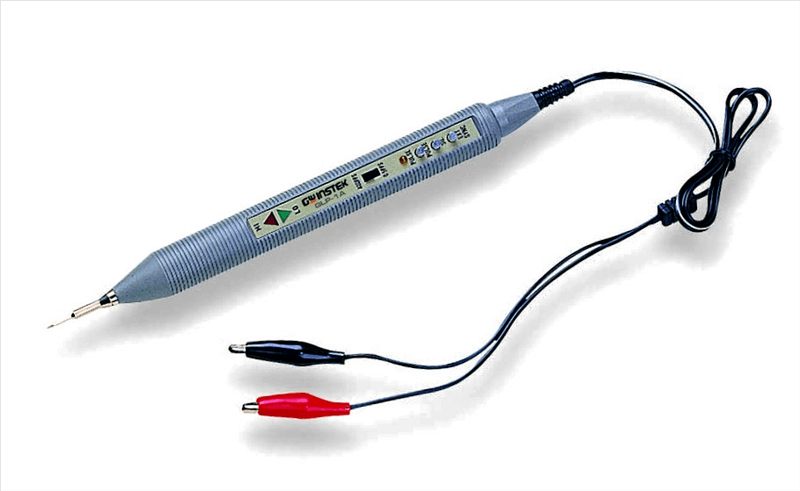

| LOGIC PROBE | |
| Maximum Input Frequency | 50MHz |
| Input Impedance | 120kΩ |
| Operating Voltage | 4V DC (minimum) 18V DC (maximum) |
| TTL | Logic "1" (HI LED) >3.0V +0.25V |
| Logic "0" (LO LED) <0.75V +0.25V | |
| CMOS | Logic "1" (HI LED) >60%Vcc +5% |
| Logic "0" (LO LED) <15%Vcc +5%, <40% +5% (For 7 ~ 18Vcc) | |
| LOGIC PULSER | |
| Sync Input Impedance | 1MΩ |
| Pulse Rate | 0.5/400pps |
| Pulse Width | 10μS |
| Output Current | 100mA sink/source |
| Square Wave Output | 5mA sink/source |
| Operation Voltage | 5 ~ 15V DC |
| Output Protection | 20V DC (maximum 30 sec) |
| Input Protection | 120V DC (maximum 30 sec) |
| Measurement Point Protection | 35V DC (maximum 30 sec) |
| DIMENSIONS & WEIGHT | |
| 18(W) x 210(H) x 18(L) mm Approx. 50 g |
|
