| TEST RANGE | |
| TTL 54/74 | |
| CMOS 40/45 | |
| DRIVE 2xxxx | |
| TEST VOLTAGE | |
| 5V/3.3V/3V/2.5V Selectable | |
| TEST TIME | |
| Average Search Time: 0.6 Sec | |
| DISPLAY | |
| 16 Characters in 1 LCD | |
| POWER SOURCE | |
| DC 9V/500mA adaptor or 9V Battery x 2(*) | |
| DIMENSIONS & WEIGHT | |
| 110(W) x 45(H) x 160(D) mm Approx. 0.4kg |
|
Features
-

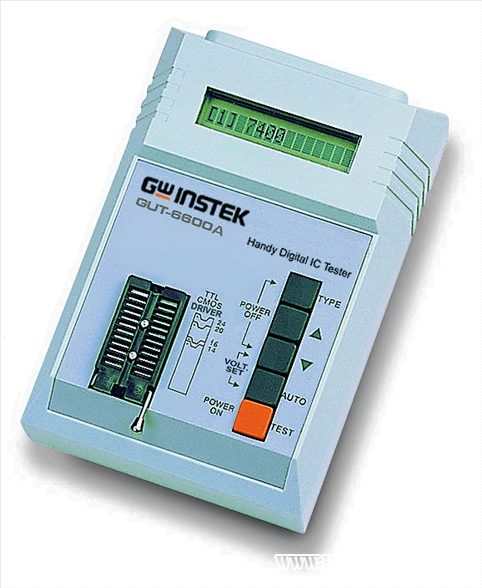

Easy-Operating Tester, Particularly be Designed for the Digital IC
-
Supported Device：74/54/40/45 Serial, Drive 2xxx
-
Small, Portable, Light and Power-Saving, Usable With Battery
-
Average Search Time: 0.6 Second
-
Display: 16 Characters in 1 Line LCD
-
Test Pins: 14~24 Pins
