Jawa Barat - Bekasi

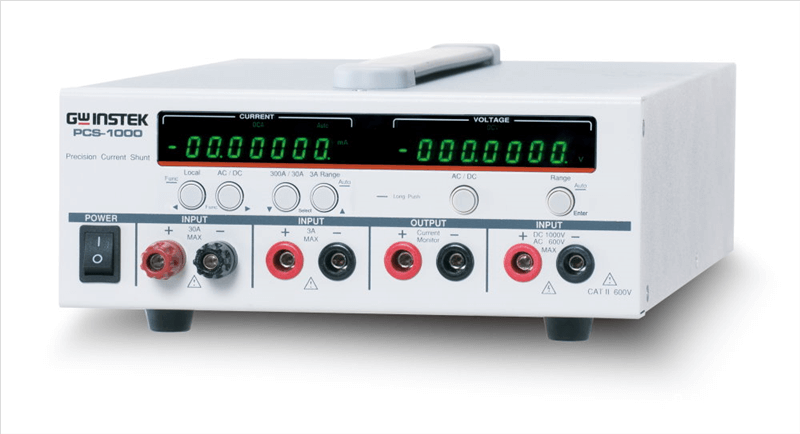

GW INSTEK PCS-1000

Harga :
CALL
Merk :
GW- Instek
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
208 Kali
Update Terakhir :
22-08-2016 13:53

Dapatkan Spesifikasi Harga GW INSTEK PCS-1000 Produk Terbaik dari Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical

Detail Produk

 PCS-1000 is a High-Precision D.C. and A.C. Current Shunt Meter which carries built-in current shunts and high-accuracy current measurement circuits. PCS-1000 not only measures current in five current levels ─300A, 30A, 3A, 300mA and 30mA, but also measures voltage at 6 1/2-digit resolution simultaneously. This unique feature puts PCS-1000 in an unprecedented position among all the shunt meters available in the market today. After a long time operation, PCS-1000 is able to maintain high measurement accuracy in spite of the temperature variation.

Features
  •
    6 1/2 Digit measurement resolution
  •
    Dual measurement for Voltage and Current
  •
    AC&DC Current measurement range: 30mA/300mA/3A/30A/300A(Max)
  •
    AC Voltage measurement range: 200mV/2V/20V/200V/600V(Max)
  •
    DC Voltage measurement range: 200mV/2V/20V/200V/1000V(Max)
  •
    Auto zero circuit
  •
    Standard Interfaces: USB, GPIB
Model PCS-1000
 DC Voltage Characteristics
    23℃±5℃(1 Year) Temperature Cofficient / ℃
 Range 200.0000mV 0.0050+0.0035 0.0005+0.0005
2.000000V 0.0050+0.0010 0.0005+0.0001
20.00000V 0.0050+0.0010 0.0005+0.0001
200.0000V 0.0050+0.0010 0.0005+0.0001
1000.000V 0.0050+0.0020 0.0005+0.0001
 Accuracy     ±(% of reading +% of Range); Voltage input Resistance:10MΩ for all DC Voltage ranges
 DC Current Characteristics
    Burden Voltage 23℃±5℃(1 Year) Temperature Cofficient / ℃
 Range 30.00000mA <0.4V 0.01+0.005 0.001+0.002
300.0000mA <0.5V 0.01+0.005 0.001+0.002
3.000000A <0.8V 0.01+0.005 0.001+0.002
30.00000A <0.8V 0.01+0.005 0.001+0.002
300.0000A <0.8V 0.02+0.005 0.001+0.002
 Accuracy ±(% of reading +% of Range)
 True RMS AC Voltage Characteristics
    Frequency 23℃±5℃(1 Year) Temperature Cofficient / ℃
 Range     200.0000mV 45Hz-2KHz
2KHz-10kHz
10kHz-20kHz
0.5+0.05
1.0+0.05
2.0+0.10
0.005+0.005
2.000000V 0.005+0.005
20.00000V 0.005+0.005
200.0000V 0.005+0.005
600.000V 0.005+0.005
 Accuracy ±(% of reading +% of Range) ℃
 True RMS AC Current(AC+DC) Characteristics
     Range         30.00000mA    45Hz-2KHz
2KHz-10kHz
   0.5+0.05
1.0+0.05
0.03+0.006
300.0000mA 0.03+0.006
3.000000A 0.03+0.006
30.00000A   45Hz-400Hz   0.5+0.05 0.03+0.006
300.0000A 0.03+0.006
 Accuracy ±(% of reading +% of Range)
 Current Monitor Accuracy
  Shunt Value DC Accuracy AC Accuracy ≦ 400Hz Max Input DC/ AC RMS
 Range     10Ω 0.01% 0.1% 30mA
1Ω 0.01% 0.1% 300mA
0.1Ω 0.01% 0.1% 3A
0.01Ω 0.01% 0.1% 30A
0.001Ω 0.02% 0.1% 300A
 General
 Power Supply      100V/120V/220V/240V±10%
 Power Line Frequency     50/60Hz
 Operating Environment Full Accuracy for 0℃ to 50℃, Full accuracy to 80% R.H. at 40℃
 Storage Environment  -40℃ to 70℃
 Power Consumprion  Max 35VA
 Dimensions 210 mm (W) x 80mm(H) x 390 mm(D)
 Weight  Approx 6kg

Permintaan Penawaran
