- Operating voltage (DC)：1.5V~150V
-
Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV
-
Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
-
Support of High Slew Rate：Max 16A/us
-
Run Program Function（GO/NO GO Test）
-
Sequence Function for High Efficient Load Simulations
-
Commands are compatible with Kikusui PLZ-4W model.
-
Dynamic(Switching) Function：0.0166Hz ~20kHz
-
Soft Start Function：Off / On(1~200ms, Res：1ms)
-
Adjustable OCP / OVP / OPP / UVP Setting
-
Short Circuit Function
-
Timer function : Elapsed Time of load on
-
Cut Off Time(Auto Load Off Timer )：1s to 999h 59min 59s or Off
-
External Channel Control / Monitoring via Analog Control Connector
-
Setup Memories：100 sets
-
3.5 Inch TFT LCD Display
-

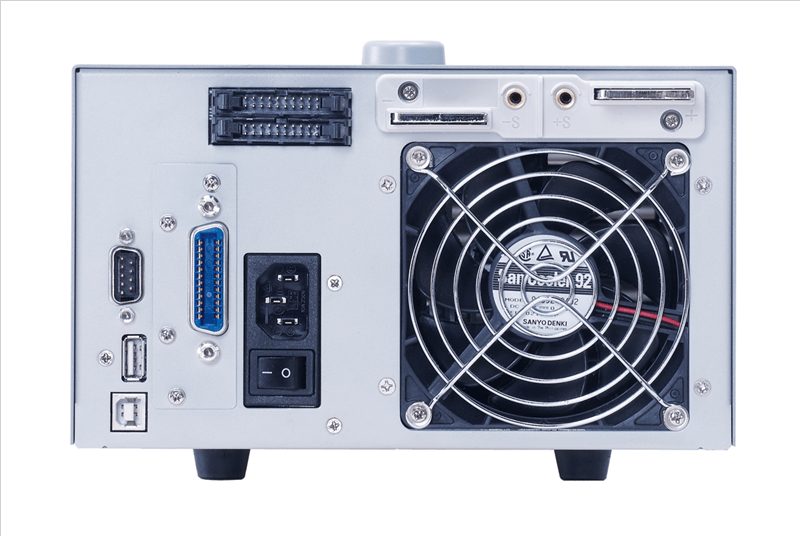

Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB (Optional)
