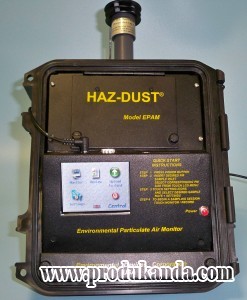

EPAM-7500 Environmental Particulate Air Monitor
HAZ-DUST™ EPAM-7500 is a lightweight 7 pound portable monitor and air station for real time measurements of particulate matter temperature and relative humidity in ambient and indoor air. Interchangeable size-selective sampling heads allow PM-10, PM-2.5, PM-1.0 or TSP monitoring. Optional accessories for measuring wind speed and direction are available. A filter holder postponed directly behind the optical sensor provides concurrent gravimetric sampling for cross calibration of optical sensor, further particulate speciation and determination of metal and carbon content.
Applications
- Hazardous Waste Sites
- Dust suppression/engineering controls
- Walk through IAQ studies
- Quantification of particulate mitigation.
- Hot Spot location and identification.
Features
- Light-weight 7 pounds!
- Color touch screen
- Ultrasonic Wind Speed and Direction
- GPS
- Dew Point & Barometric pressure
- Wireless Option
- Solar Option
Specifications
Weatherproof Enclosure
Inline 47mm FRM Cassette
Sensing range: .001-20.0 and/or .01-200.0 mg/m³
PM size range: .1-100 µm
Sampling flow rate: 4.0 LPM
Alarm output: 90 db at 3 ft
Analog Output: 0-2 Vdc
Digital output: RS-232--Record Time: 1 s. to 15 mon.
Display: Real-Time mg/m3
Operating temp: -10°C -50°C Battery: Rechargeable 24hr
Weight: 7 lbs
Dimensions: 14 x 6 x 10 in.
