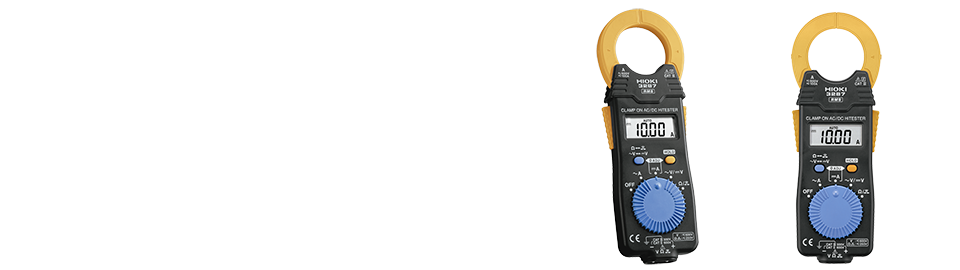

HIOKI CLAMP ON AC/DC HiTESTER 3287
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
18-03-2016 09:48
Dapatkan Spesifikasi Harga
HIOKI CLAMP ON AC/DC HiTESTER 3287 Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| DC current |
10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| AC current |
10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)
Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC voltage |
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
| AC voltage |
4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)
Basic accuracy: ±2.3 % rdg. ±8 dgt. |
| Resistance |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt |
| Crest factor |
2.5 or less (150 A, 1000 V max.) |
| Other functions |
Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) |
| Display |
LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s |
| Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 25 hours |
| Core jaw dia. |
φ 35 mm (1.38 in) |
| Dimensions and mass |
57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz) |
| Accessories |
|
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| DC current |
10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| AC current |
10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)
Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC voltage |
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
| AC voltage |
4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)
Basic accuracy: ±2.3 % rdg. ±8 dgt. |
| Resistance |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt |
| Crest factor |
2.5 or less (150 A, 1000 V max.) |
| Other functions |
Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) |
| Display |
LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s |
| Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 25 hours |
| Core jaw dia. |
φ 35 mm (1.38 in) |
| Dimensions and mass |
57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz) |
| Accessories |
Instruction manual ×1, Test Lead L9208 ×1, Carrying Case 9398 ×1 |
