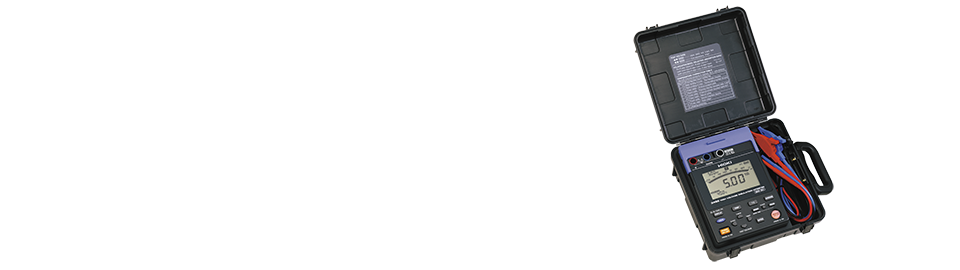

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Testing voltage | 250 V DC | 500 V DC | 1 kV DC | 2.5 kV DC | 5 kV DC |
|---|---|---|---|---|---|
| Measurement resistance organization (Auto ranging) | 0.00MΩ - 9.99MΩ, 9.0MΩ - 99.9MΩ, 90MΩ - 999MΩ, 0.90GΩ - 9.99GΩ, 9.0GΩ - 99.9GΩ, 90GΩ - 250GΩ |
0.00MΩ - 9.99MΩ, 9.0MΩ - 99.9MΩ, 90MΩ - 999MΩ, 0.90GΩ - 9.99GΩ, 9.0GΩ - 99.9GΩ, 90GΩ - 500GΩ |
0.00MΩ - 9.99MΩ, 9.0MΩ - 99.9MΩ, 90MΩ - 999MΩ, 0.90GΩ - 9.99GΩ, 9.0GΩ - 99.9GΩ, 90GΩ - 999GΩ, 0.90TΩ - 1.00TΩ |
0.00MΩ - 9.99MΩ, 9.0MΩ - 99.9MΩ, 90MΩ - 999MΩ, 0.90GΩ - 9.99GΩ, 9.0GΩ - 99.9GΩ, 90GΩ - 999GΩ, 0.90TΩ - 2.50TΩ |
0.00MΩ - 9.99MΩ, 9.0MΩ - 99.9MΩ, 90MΩ - 999MΩ, 0.90GΩ - 9.99GΩ, 9.0GΩ - 99.9GΩ, 90GΩ - 999GΩ, 0.90TΩ - 5.00TΩ |
| Accuracy Resistance up to testing V/100 nA | ±5% rdg. ±5dgt. 0.00MΩ - 2.50GΩ |
±5% rdg. ±5dgt. 0.00MΩ - 5.00GΩ |
±5% rdg. ±5dgt. 0.00MΩ - 10.0GΩ |
±5% rdg. ±5dgt. 0.00MΩ - 25.0GΩ |
±5% rdg. ±5dgt. 0.00MΩ - 50.0GΩ |
| Short current | 2 mA or less | 2 mA or less | 2 mA or less | 2 mA or less | 2 mA or less |
| Leak current measurement | 1.00 nA to 1.20 mA, 6 ranges (current measurement that occurs when test voltage is generatede) | ||||
| Voltage measurement | ±50 V to ±1.00 kV DC, 50 V to 750 V AC (50/60 Hz), Accuracy: ±5 % rdg. ±5 dgt. , Input resistance: Approx. 10 MΩ |
||||
| Temperature measurement | -10.0 ˚C to 70.0 ˚C, Accuracy: ±1.5 ˚C, 0.0 ˚C to 40.0 ˚C, Accuracy: ±1.0˚C (used with the 9631-01/-05 optional sensor) |
||||
| Other functions | Insulation diagnose, Data memory, PC communication, Elapsed time display, Clock, Averaging function, Data storage, Auto discharge, Auto power off, etc. | ||||
| Display | Digital LCD, max. 999 dgt. with backlight, Bar graph display | ||||
| Power supply | LR6 (AA) alkaline batteries ×6, Battery Pack 9459, or AC Adapter 9753 (100 - 240 VAC, output 12 VDC) Continuous use : [LR6] 5 hr, [9459] 9 hr, (Occur 5 kV, +/- open terminal) |
||||
| Dimensions and mass | 260 mm (10.24 in) W × 251 mm (9.88 in) H × 120 mm (4.72 in) D, 2.8 kg (98.8 oz) | ||||
| Accessories | Test Lead 9750-01 (red) ×1, Test Lead 9750-02 (black) ×1, Test Lead 9750-03 (blue) ×1, Alligator Clip 9751-01 (red) ×1, Alligator Clip 9751-02 (black) ×1, Alligator Clip 9751-03 (blue) ×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×6, USB cable ×1, PC application software (CD-R) ×1 | ||||
