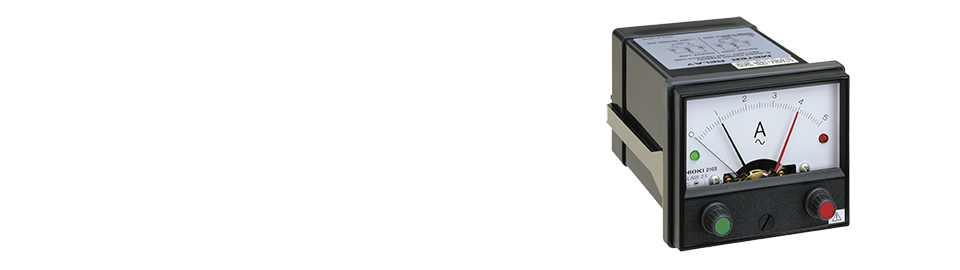

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Indicator shape | φ 0.3 mm (0.01 in) pin |
|---|---|
| Accuracy class | [2103H/L/HL]: 2.5 %, [2104H/L/HL]: 1.5 % |
| Setting accuracy | Within 1.5 % of the full scale value (Independent of meter section) |
| Dead-zone width | Within 0.5 % of the scale length |
| Indicator operating range | Within the scale (passing indicator needle system) |
| Setting indicator (shape and color) | Spear shape H indicator (upper-limit side): Red, L indicator (lower-limit side): Green |
| Setting indicator setting range | Within the all range of scale for both H and L |
| Minimum H/L space | Within 3 % of the scale length |
| Delay time from power on | Approx. 2 s (time constant) |
| Relay contact structure | One transfer for both H and L |
| Relay output response | Approx. 0.5 s |
| Max. current of relay contact | 5 A (Under condition of 250 V AC, 30 V DC, resistance load) |
| Power supply | 100 V/200 VAC (to be specified at the time of ordering) 50/60 Hz, 3 VA max. |
