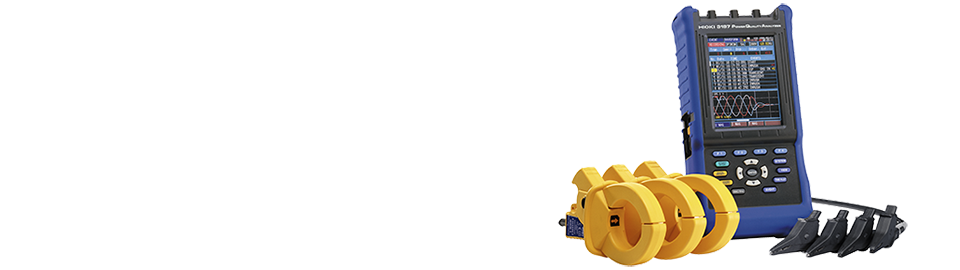

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Measurement line type | Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire |
|---|---|
| Measurement range | [Voltage] 600.0 V AC, [Current] 500.0 mA to 5.000 kA AC (depends on current sensor in use), [Power] 300.0 W to 9.00 MW (depends on combination of current range and line type) |
| Basic accuracy | Voltage: ±0.3 % rdg. ±0.2 % f.s. Current: ±0.3 % rdg. ±0.2 % f.s. + current sensor accuracy Active power: ±0.3 % rdg. ±0.2 % f.s. + current sensor accuracy (at power factor=1) |
| Measurement items | 1. RMS Voltage and Current (200 ms calculation) 2. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle 3. Current (1/2) RMS: half-cycle calculation 4. Frequency 5. Active Power/ Reactive Power/ Apparent Power/ Power Factor/ Displacement Power Factor/ Active or Reactive Energy Consumption 6. Demand (Active or Reactive power) 7. Up to 50th Harmonic Analysis (Time series measurement or recording is not available) 8. Peak Voltage and Current 9. Total harmonic voltage distortion ratio 10. Voltage Unbalance Factor 11. K Factor (Time series recording is not capable) 12. Total harmonic current distortion ratio (Time series recording is not available) |
| Event Detection | 1. Voltage Swells (Rise), Voltage Dips (Drop), Interruptions: RMS value detected using voltage (1/2) measured every half cycle 2. Inrush Current: RMS value detected using current (1/2) every half cycle 3. Transient Overvoltage: 50 Vrms or more detection, 10 to 100 kHz 4. Timer: Detect events at preset intervals 5. Manual: Detect events when keys are pressed |
| Number of Recordable Events | 50 event waveforms, 20 event voltage fluctuation graphs, 1 inrush current graph, 1000 event counts |
| Interfaces | USB 2.0 (Communication with the PC) |
| Display | 4.7-inch color STN LCD |
| Power supply | AC adapter 9418-15 (100 - 240 V, 50/60 Hz), Battery pack 9459, Continuous use 6 hr (LCD Back-light auto-OFF 5 min.), 23 VA max. |
| Dimensions and mass | 128 mm (5.04 in)W × 246 mm (9.69 in)H × 63 mm (2.48 in)D, 1.2 kg (42.3 oz) (with Battery pack) |
| Accessories | Voltage cord L9438-55 ×1 (Black ×4), AC adapter 9418-15 ×1, Power cord ×1, Battery pack 9459 ×1, Input terminal labels ×1, Input cord labels ×1, Strap ×1, Instruction manual ×1, Measurement guide ×1, USB Cable ×1, CD-R (Applications software) ×1, Carrying case ×1 |
