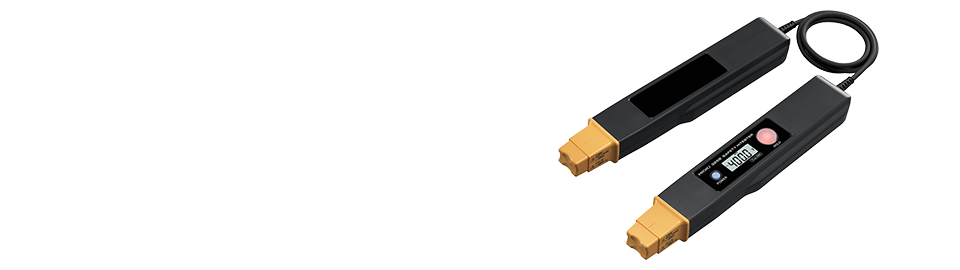

HIOKI SAFETY HiTESTER 3258
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
18-03-2016 11:30
Dapatkan Spesifikasi Harga
HIOKI SAFETY HiTESTER 3258 Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.
| Measurement parameter |
AC voltage (AC potential bridge) |
| Objects of measurement |
Insulated conductors (IV or CV equivalent, min. 100 mm² x-section), metal conductors Note: Not usable on shielded conductors |
| Measurement range |
420.0V/ 600V AC (Auto) |
| Measurement values |
True RMS |
| Max. rated voltage to earth |
600V AC rms |
| Influence of adjacent wiring |
±5% rdg. or less |
| Temperature characteristics |
0.05 % rdg./ °C |
| Display |
Digital LCD, max. 4200 digit (zero suppress at 10 digits or less) |
| Display refresh rate |
Approx. once every 0.6 seconds |
| Display response |
2.4 s or less |
| Functions |
Data hold function, auto-power off, low battery warning |
| Power supply |
LR6 (AA) alkaline battery ×6, Continuous use: 14 hr (Power ON, no measurement), or 1-minute measurements for 1000 times, or 5-minute measurements for 200 times |
| Dimensions and mass |
51mm (2.01in) W × 275mm (10.83in) H × 37.5mm (1.48in) D (one probe), 670g (23.6oz) |
| Accessories |
Instruction manual ×1, LR6 (AA) alkaline battery ×6, Soft carrying case ×1 |
