HYDROBIOS Depth Meter with 2 Flow Meters for Online Operation

Harga :
CALL
Merk :
HYDROBIOS
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
288 Kali
Update Terakhir :
12-02-2019 10:53

Dapatkan Spesifikasi Harga HYDROBIOS Depth Meter with 2 Flow Meters for Online Operation Produk Terbaik dari Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical

Detail Produk

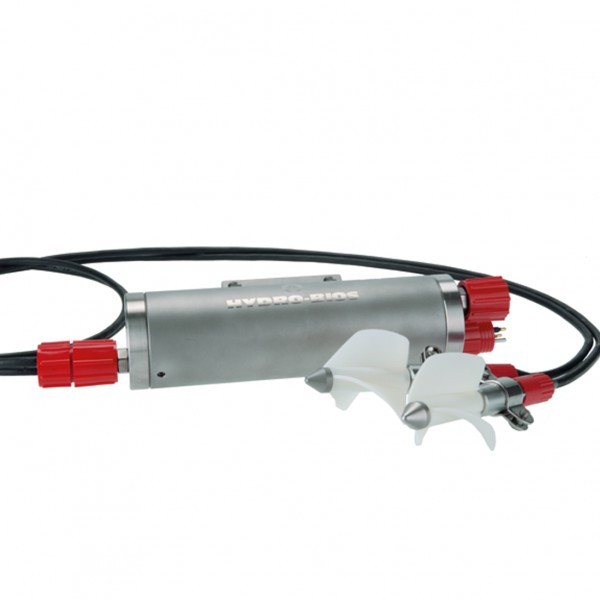

Depth Meter with 2 Flow Meters for Online Operation


Handy precision pressure, flow velocity and volume data transmitter



ABOUT

This light and handy measuring instrument provides accurate pressure, flow velocity and volume data during operations of plankton nets for limological and oceanographic applications. The 2 Electronic Flow Meters to measure flow velocity and volume are ideal to be operated with either single-ring plankton nets or double-ring plankton nets. The integrated long-distance telemetry can be used via electro-mechanical towing cables of more than 10000 m length. The system consists of a titanium pressure housing with integrated pressure sensor, electronics, rechargeable batteries and two Electronic Flow Meters. A splash-proof hand unit is the link between underwater unit and PC during the operations. The state-of-the-art electronics, optimised in power consumption, are designed for ambient temperatures from -40°C up to +85°C. The system is rated to a maximum operational depth of 3000 meters. The Depth Meter is delivered with the data acquisition software OceanLab 3, an easy-to-use package for pre-deployment system set-up, real-time data acquisition, data visualisation, storing and export.

FEATURES
  • Compact size and low weight
  • Bi-directional communication
  • Standard depth range 3000 m
  • Long-distance FSK-telemetry (>10000 m)
  • Low power consumption
  • Battery operated Underwater Unit, max. voltage of 5 V at the conductor cable
  • Electronics operate from -40°C up to +85°C
  • EC-conformity (CE) EN 50081-1, EN 50082-1



TECHNICAL DATA
Measuring range pressure 0 ... 3000 dbar ± 0.1% f.s.
Measuring range velocity 0.1 ... 9.9 m/s
Accuracy velocity ±1% (0.5 ... 9.9 m/s)
±5% (0.1 ... 0.5 m/s)
Measuring range volume 0.0 ... 6500.0 m³
(net opening below 0.25 m²)
0.0 ... 65000 m³
(net opening above 0.25 m²)
Data sampling Rate 1 Hz (one data set per second)
Telemetry connector SUBCONN BH 2 M
Dimensions 75 mm dia. x 350 mm
Weight 4 kg
Material Titanium (pressure tube),
stainless steel (flow meters)
Hand Unit Plastic housing, splash-proof (IP 65),
battery powered,
LC-display 4 x 20 characters, interface for PC (RS-232)
ORDERING INFORMATION
Products
450 401 Depth Meter with 2 Electronic
Flow Meters for online operation
incl. hand unit,
battery charger and
OceanLab 3 software
