Water Sampling System for Oceanography and Limnology

ABOUT

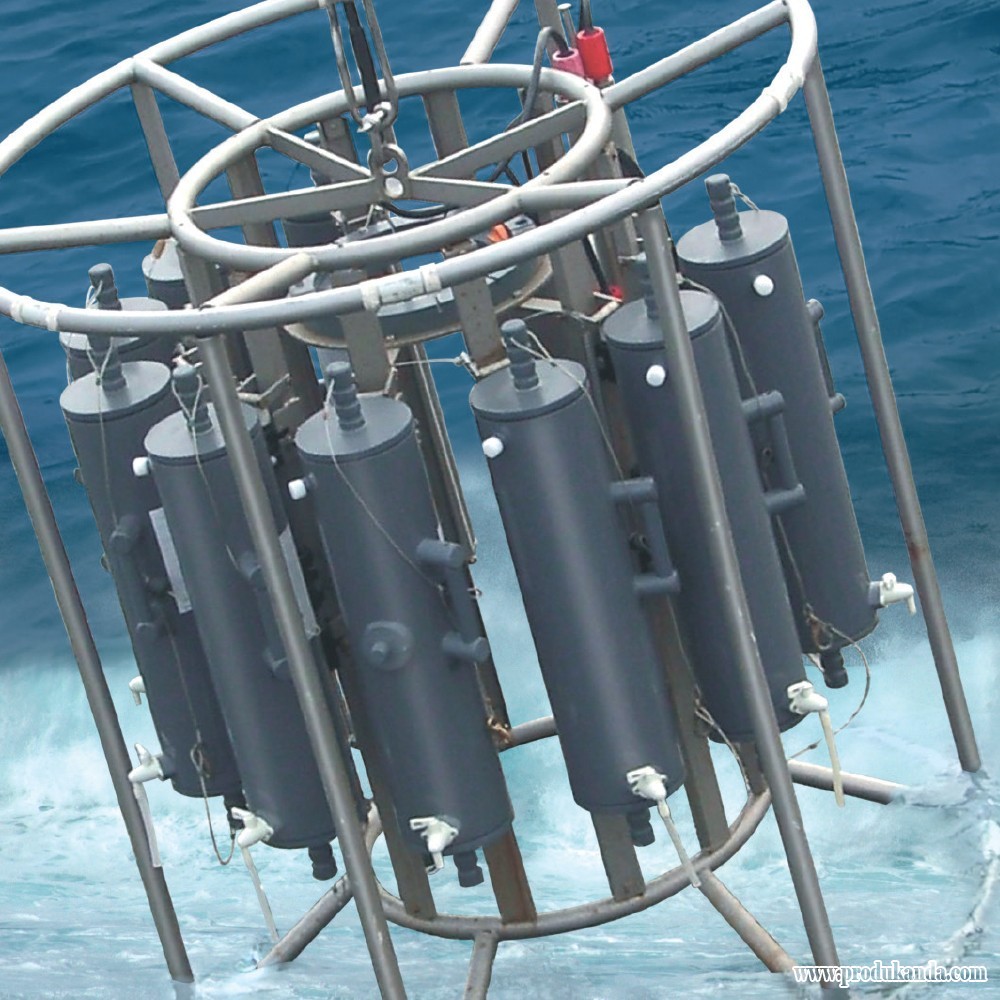

The approved Multi Water Sampler MWS 12 is an instrument designed for the collection of water samples in successive water layers. Only one operation for 12 different samples! The sturdy stainless steel array is equipped with twelve racks to which Plastic Water Samplers or Free Flow Samplers with capacities from 1.7 to 10 litres capacity can be mounted. The MWS 12 is equipped with a motor-driven release device with an integrated Depth Meter (measuring range according to customers’ requirements). The water samplers are sequentially closed in the succession of their mounting to the array (i.e. No. 1, 2, 3, …, 10, 11 and 12). The state-of-the-art electronics, optimised in power consumption, are designed for ambient temperatures from – 40°C up to +85°C. The maximum operational water depth is 3000 metres. A special version for operational depths down to 6000 metres is available upon request. The MWS 12 is generally delivered for combined Online/Offline use and is therefore the ideal all-purpose rosette system for use on any research vessel worldwide.

ACCESSORIES

CT-Set

Together with the optional CT-Set the system offers the full capability of a state-of-the-art oceanographic CTD probe. The CT-Set consists of one conductivity sensor, one temperature sensor and an additional electronics board which are completely integrated into the Motor Unit of the MWS 12. From the CTD data the system computes salinity, density and sound velocity according to UNESCO formulas.
