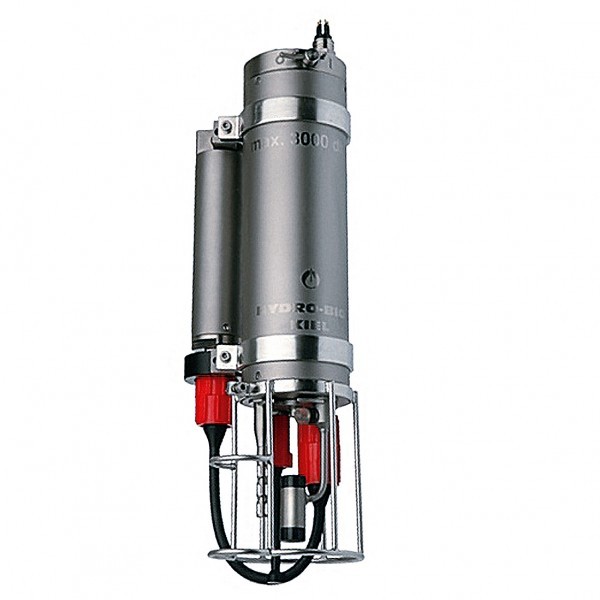

HYDROBIOS Net Probe CTD with 2 Electronic Flow Meters
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
12-02-2019 10:51
Dapatkan Spesifikasi Harga
HYDROBIOS Net Probe CTD with 2 Electronic Flow Meters Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
FEATURES
-
Combined online/offline use
-
Bi-directional communication
-
Standard depth range 3000 m
-
Long-distance FSK-telemetry (>10000 m)
-
Low power consumption
-
Battery operated Underwater Unit, max. voltage of 5 V at the conductor cable
-
Electronics operate from -40°C up to +85°C
-
EC-conformity (CE) EN 50081-1, EN 50082-1
OPTIONS
- Additional sensors of various parameters
- Operational depth down to 6000 meters
| TECHNICAL DATA |
|
| Pressure sensor |
0 ... 3000 dbar ± 0.1% f.s. |
| Conductivity sensor |
0 ... 65 ± 0.01 mS/cm |
| Temperature sensor |
-2 ... +32 ± 0.005°C |
| Measuring range velocity |
0.1 ... 9.9 m/s |
| Accuracy velocity |
± 1% (0.5 ... 9.9 m/s)
± 5% (0.1 ... 0.5 m/s) |
| Measuring range volume |
0.0 ... 6500.0 m³
(net opening below 0.25 m²)
0.0 ... 65000 m³
(net opening above 0.25 m²) |
| Data sampling rate |
1 Hz (one data set per second) |
| Data memory |
16 MByte |
| Telemetry connector |
SUBCONN IL 2 M |
| Dimensions |
approx. 10 x 16 x 48 cm |
| Weight |
7 kg |
| Material |
Titanium (pressure tube and battery pack),
stainless steel (flow meters) |
| Deck Command Unit |
Metal housing for use in 19"-rack
or as table housing,
indication of sensor data,
battery status,
LCD-display with LED backlight,
interface for Personal Computer (RS 232),
power supply: 85 - 260 V AC |
| ORDERING INFORMATION |
| Products |
| 450 100 |
Net Probe CTD with 2 Electronic
Flow Meters
incl. Deck Command Unit |
