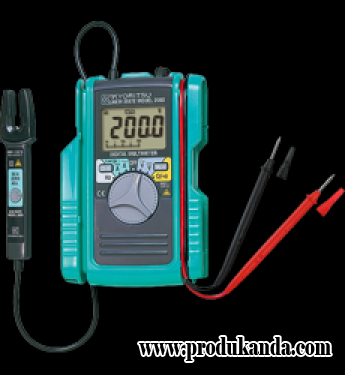

Digital Multimeter with AC/DC Clamp Sensor
KEWMATE 2000
• Capable of measuring AC and DC currents up to 60A with OPEN CLAMP SENSOR.
• 3400 counts with bargraph display.
• Pocket size and heavy duty design.
How to put test lead in.
| DC V | 340mV/3.4/34/340/600V (Input Impedance: 10MΩ) ±1.5%rdg±4dgt |
|---|---|
| AC V | 3.4/34/340/600V (Input Impedance: 10MΩ) ±1.5%rdg±5dgt [50 - 400Hz] |
| DC A | 60A ±2%rdg±5dgt |
| AC A | 60A ±2%rdg±5dgt (50/60Hz) |
| Ω | 340Ω/3.4/34/340kΩ/3.4/34MΩ ±1%rdg±3dgt (0 - 340kΩ) ±5%rdg±5dgt (3.4MΩ) ±15%rdg±5dgt (34MΩ) |
| Continuity buzzer | Buzzer sounds below 30±10Ω (Continuity buzzer works on 340Ω range only) |
| Frequency | (AC A) 3.4/10kHz ±0.1%rdg±1dgt (AC V) 3.4/34/300kHz ±0.1%rdg±1dgt (Input sensitivity Current: more than 15A, Voltage: more than 30V) |
| Conductor size | Ø6mm max. |
| Applicable standards | IEC 61010-1 CAT III 300V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1 |
| Power source | R03 (DC 1.5V) × 2 * Continuous measuring time: approx. 45 hours (Auto power save: approx. 10 minutes) |
| Dimensions | 128(L) × 87(W) × 24(D)mm |
| Weight | 210g approx. |
| Included Accessories | R03 (DC 1.5V) × 2, Instruction Manual |
| Optional Accessories | 9107 (Carrying case [Soft]) |
