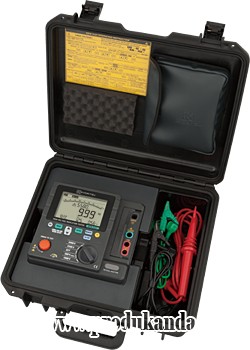

KYORITSU High Voltage Insulation Tester 3127
Pembelian Minimal :
1 unit
Pengiriman :
1 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
04-02-2016 14:08
Dapatkan Spesifikasi Harga
KYORITSU High Voltage Insulation Tester 3127 Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
| Insulation Resistance up to 10TΩ |
| • |
Short-Circuit Current up to 5mA |
| • |
Wide Test Voltage from 250V to 5000V |
| • |
Diagnostic Insulation Tests: IR, PI, DAR, DD, SV, RAMP (Breakdown and Burn modes), Capacitance, Leakage Current |
| • |
Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android device |
| • |
Memory and Logging functions |
| • |
Filter function reduces noise interference for obtaining stable measurements |
| • |
Large back light display with Bar-Graph indication |
| • |
Robust design for field use with IP65 (lid closed) |
| • |
Powered by rechargeable battery |
| • |
Safety Standard IEC 61010-1 CAT Ⅳ 600V |
| |
Free Android software "KEW smart 3127"
is available on "Google Play Store" (*)
- Supporting Android ver. 2.2 - 4.4
- WVGA (800 × 480) resolution or higher
 |
| (*) |
Please search "KEW Smart" in Google Play Store.
Communication charge may be incurred separately to download application. |
|
| |
|
  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Insulation resistance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Test voltage |
|
|
|
250V (*1) |
|
|
|
500V |
|
|
|
1000V |
|
|
|
2500V |
|
|
|
5000V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Max
measurement
value |
|
|
|
9.99GΩ |
|
|
|
99.9GΩ |
|
|
|
199GΩ |
|
|
|
999GΩ |
|
|
|
9.99TΩ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy |
|
|
|
0.0 - 99.9MΩ
±5%rdg±3dgt |
|
|
|
0.0 - 999MΩ
±5%rdg±3dgt |
|
|
|
0.0 - 1.99GΩ
±5%rdg±3dgt |
|
|
|
0.0 - 99.9GΩ
±5%rdg±3dgt |
|
|
|
0.0 - 99.9GΩ
±5%rdg±3dgt |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.1G - 9.99GΩ
±20%rdg |
|
|
|
1G - 99.9GΩ
±20%rdg |
|
|
|
2G - 199GΩ
±20%rdg |
|
|
|
100G - 999GΩ
±20%rdg |
|
|
|
0.1T - 9.99TΩ
±20%rdg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Short circuit current |
|
|
|
Max 5.0mA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output voltage |
|
|
|
Accuracy |
|
|
|
-10 - +10% |
|
|
|
-10 - +20% |
|
|
|
0 - +20% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Variable |
|
|
|
- |
|
|
|
-20% - 0% (5% step) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Monitor |
|
|
|
±10%rdg±20V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Voltage measurement |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measuring range |
|
|
|
AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy |
|
|
|
±2%rdg±3dgt |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Current measurement |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measuring range |
|
|
|
0.00nA - 5.50mA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy |
|
|
|
±10%rdg (*2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Capacitance measurement |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measuring range |
|
|
|
5.0nF - 50.0µF |
|
|
|
5.0nF - 25.0µF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy |
|
|
|
±5%rdg±5dgt |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power source |
|
|
|
Rechargeable Battery (Lead-acid Battery) 12V (*3)
Charging power: DC 15VA MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Communication Interface |
|
|
|
Bluetooth: Ver2.1 + EDR Class2, USB: Ver1.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Applicable standards |
|
|
|
IEC 61010-1, 61010-2-030 CAT Ⅳ 600V Pollution degree 2,
IEC 61010-031, IEC 61326-1, 2-2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dimension |
|
|
|
208 (L) × 225 (W) × 130 (D) mm
380 (L) × 430 (W) × 154 (D) mm (Hard case) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight |
|
|
|
3127: 4kg Approx. (including battery),
Total: 8kg Approx. (including Accessories) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accessories |
|
|
|
7165A (Line probe), 7224A (Earth cord), 7225A (Guard cord),
8019 (Hook type prod), 8327EU (Power adaptor 15V/1A), 9171 (Hard case),
Instruction manual |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Optional |
|
|
|
7168A (Line probe with alligator clip: 3m),
7253 (Longer line probe with alligator clip: 15m),
8258 (USB communication set),
8302 (Adaptor for recorder 1mV/1µA) |
|
|
|
|
|
|
|
|
|
|
|
| |
| (*1): |
IR mode only |
| |
| (*2): |
Determined by resistance and Voltage values (over 10MΩ) |
| |
| (*3): |
No measurements are possible while charging |
| |
| (*): |
Bluetooth is a registered trademark of the Bluetooth SIG, Inc. |
|
