AC Digital Clamp Meters

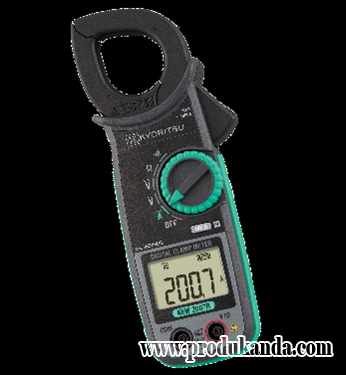

KEW 2007R
• Fully Safety jaw
• Ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.1A resolution
• Accurate reading with True RMS
600/1000A auto-ranging
• Long battery life
• Safety Standard
IEC 61010-1 CAT IV 300V / CAT III 600V
| AC A | 600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 - 65Hz] ±2.0%rdg±4dgt [40 - 400Hz] |
|---|---|
| AC V | 600.0V ±1.2%rdg±3dgt [45 - 65Hz] ±1.5%rdg±4dgt [40 - 400Hz] |
| DC V | 600.0V ±1.2%rdg±3dgt |
| Ω | 600.0Ω/6.000kΩ (Auto-ranging) ±1.3%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6.000kΩ) |
| Continuity buzzer | 600Ω (Buzzer sounds below 90Ω) |
| Conductor size | φ33mm max. |
| Applicable standards | IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS) |
| Power source | R03/LR03 (AAA) (1.5V) × 2 |
| Continuous measuring time | Approx.170 hours (when R03 is used) (Auto power save : approx. 10 minutes) |
| Dimensions | 204(L) × 81(W) × 36(D)mm |
| Weight | 220g Approx. (including batteries) |
| Included Accessories | 7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual |
| Optional Accessories | 8008 (Multi-Tran) |
