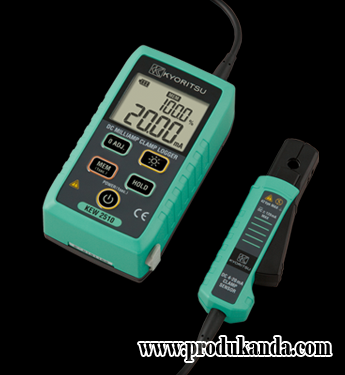

DC Milliamp Clamp Logger
KEW 2510
• Measures 4 to 20 mA instrumentation and process signals without breaking the loop
• Memory function stores up to 192000 data useful for monitoring the signals over time and fault finding
• Transfer data to PC via Bluetooth
• Top class measurement 0.2% accuracy
• ∅6mm clamp jaw easy to use in tight places
• LED light for illuminating the measurement spot
• Analog output terminal to allow the connection to a recorder or a digital multimeter
| AC A | 20/100mA(Auto ranging) ±0.2%rdg±5dgt (0.00mA - 21.49mA) ±1.0%rdg±5dgt (21.0mA - 120.0mA) |
|---|---|
| Conductor size | φ6mm max. |
| Analog output | Recorder: DC1000mV against DC100mA |
| Applicable standards | IEC 61010-1, Pollution degree 2 IEC 61010-2-032, IEC 61326-1(EMC) IEC 60529 IP40, EN50581(RoHS) |
| Operating temperature & humidity range | -10 - +50℃ <85% |
| Storage temperature & humidity range | -20 - +60℃ <85% |
| Power source | R6/LR6(AA) (1.5V) x4 (Alkaline LR6 is recommended.) External supply (AC adapter MODEL8320) |
| communication interface | Bluetooth Ver2.1+EDR Class2 |
| Dimensions / Weight | 111(L)x61(W)x46(D)mm : Display unit 104(L)x33(W)x20(D)mm : Sensor 700mm : Sensor Cable Approx. 310g(including batteries) |
| Included Accessories | 8320(AC adapter), KEW Windows for 2510(Software) 9096(Carrying case), LR6(AA)x4, Instruction manual Software installation manual |
| Optional Accessories | 7256(Output cord) |
