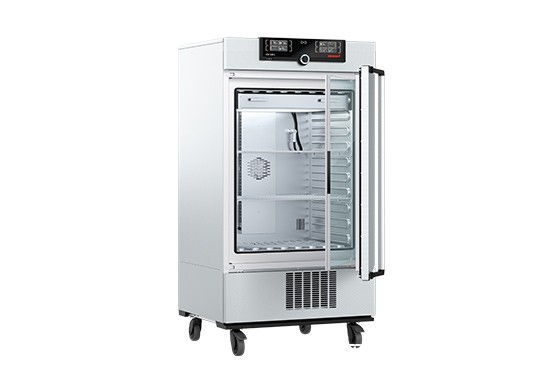

MEMMERT Climate chamber ICH260L

Harga :

CALL

Merk :

MEMMERT

Pengiriman :

3 hari sejak pembayaran

Lokasi :

Jawa Barat - Bekasi

Dilihat :

126 Kali

Update Terakhir :

06-06-2016 09:43

Dapatkan Spesifikasi Harga MEMMERT Climate chamber ICH260L Produk Terbaik dari Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical

Detail Produk

Properties

Control of standard components

ControlCOCKPIT	adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays
Temperature	2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
Humidity	humidity supply with distilled water from external tank by self-priming pump
Humidity	humidity supply with distilled water from external tank by self-priming pump
Humidity	humidification by hot steam generator
Humidity	active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 %
Light	daylight and UV-light can be programmed individually via controller
Light	cold white light +/- 6 %, for UV-light +/- 10 %
Light	illumination unit consisting of 4 fluorescent lights with cold white light (standard illuminant D65, 6.500K) and 2 UV-lamps in the spectral range of 320-400 nm
Timer	Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Temperature

from +10°C up to +60°C with humidity
resolution of display for setpoint and actual temperature values	0.1°C

Control technology

Function SetpointWAIT	the process time does not start until the set temperature is reached
Language setting	German/English/Spanish/French
Calibration	three freely selectable values each, temperature/humidity/CO2
adjustable parameters	temperature (Celsius or Fahrenheit), fan speed, light, programme time, time zones, summertime/wintertime

Ventilation

Fan	forced air circulation in working chamber adjustable from 10 to 100 % in 10 % steps

Communication

Documentation	programme stored in case of power failure
Programming	AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Safety

Temperature control	mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature
Temperature control	over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY	additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature
Autodiagnostic system	integral fault diagnostics for temperature and humidity control
Alarm	visual and acoustic

Heating concept

no drying-up of the load caused by the cooling device due to separation of thermal jacket from interior
energy-saving use of CFC-free cooling/heating system (refrigerant R134a)
highly efficient automatic defrosting system
air jacket heating system for gentle all-around heating

Standard equipment

Door	inner glass doors
Door	fully insulated stainless steel doors with 2-point locking (compression door lock)
Housing	rear zinc-plated steel
Internals	2 stainless steel grids
Installation	on lockable castors

Stainless steel interior

Max. loading of chamber:	200 kg
Dimensions W x H x D in mm	w(A) x h(B) x d(C): 640 x 800 x 500 mm
Volume	256 l

Textured stainless steel casing

w(D) x h(E) x d(F): 824 x 1552 x 734 mm

Electrical data

Voltage Electrical load	230 V, 50/60 Hz approx. 1350 W
Voltage Electrical load	115 V, 50/60 Hz approx. 1350 W

Packing/shipping data

the appliances must be transported upright
Customs tariff number	8419 8998
Country of origin	Federal Republic of Germany
WEEE-Reg.-No.	DE 66812464
Dimensions approx incl. carton	B x H x T: 930 x 1760 x 930 mm
Net weight	approx. 160 kg
Gross weight carton	approx. 217 kg
