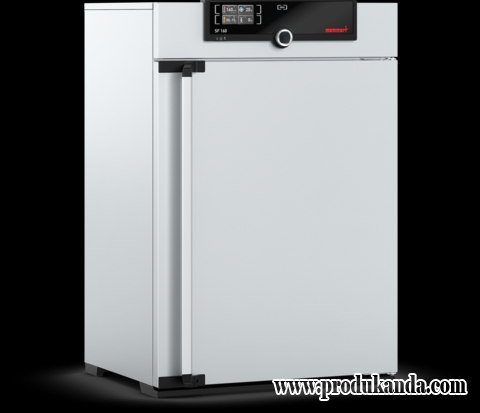

MEMMERT Steriliser SF160plus
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
01-06-2016 14:09
Dapatkan Spesifikasi Harga
MEMMERT Steriliser SF160plus Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
Properties
Control of standard components
| ControlCOCKPIT |
adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays |
| Temperature |
2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
| Timer |
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
Temperature
| Set temperature range in °C |
min.10°C above ambient up to +250°C |
| resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED) |
Control technology
| Function HeatBALANCE |
adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 % |
| Function SetpointWAIT |
the process time does not start until the set temperature is reached |
| Language setting |
German/English/Spanish/French |
| Calibration |
three freely selectable temperature values |
| adjustable parameters |
temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime |
Ventilation
| Fan |
forced air circulation by quite air turbine, adjustable in 10 % steps for each segment individually |
| Fresh air admixture |
adjustment of pre-heated fresh air admixture by air flap control in 10 % steps for each segment individually |
| Vent |
vent connection with restrictor flap |
Communication
| Documentation |
programme stored in case of power failure |
| Programming |
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
| Temperature control |
mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature |
| Temperature control |
overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display |
| AutoSAFETY |
additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature |
| Autodiagnostic system |
for fault analysis |
| Alarm |
visual and acoustic |
Standard equipment
| Scope of delivery |
incl. works calibration certificate for +160°C |
| Door |
fully insulated stainless steel door with 2-point locking (compression door lock) |
| Housing |
rear zinc-plated steel |
| Interior |
easy-to-clean interior,made of stainless steel,reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides |
| Internals |
2 stainless steel grids |
Stainless steel interior
| Max. loading of chamber: |
210 kg |
| Dimensions W x H x D in mm |
w(A) x h(B) x d(C): 560 x 720 x 400 mm |
| Volume |
161 l |
Textured stainless steel casing
| w(D) x h(E) x d(F): 745 x 1104 x 684 mm |
Electrical data
| Voltage Electrical load |
230 V, 50/60 Hz
approx. 3200 W |
| Voltage Electrical load |
115 V, 50/60 Hz
approx. 1800 W |
Packing/shipping data
| the appliances must be transported upright |
| Customs tariff number |
8419 8998 |
| Country of origin |
Federal Republic of Germany |
| WEEE-Reg.-No. |
DE 66812464 |
| Dimensions approx incl. carton |
B x H x T: 830 x 1300 x 800 mm |
| Net weight |
approx. 96 kg |
| Gross weight carton |
approx. 122 kg |
