Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging pats, hard ally steel, aluminum alloy, bearing steel, carburized steel sheet, etc.

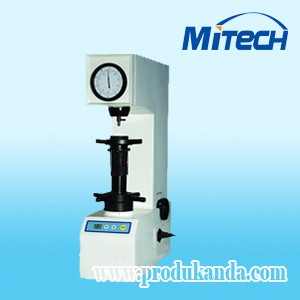

HRM-45DT Motorized Superficial Rockwell Hardness Tester adopts motorized testing method. Its testing force can be loaded, kept and unloaded automatically. Avoid man-made error and easy to use. The characteristics of the instrument is light testing force and therefore, leaving very small indentation.
Technical Specifications
|
TYPE
PROJECT
|
HR-150DT
|
HRM-45DT
|
XHR-150
|
|
Rockwell Scales
|
HRA, HRB, HRC, HRD, HRE, HRF,HRG,HRH,HRK
|
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
|
HRE, HRL, HRM, HRR
|
|
Initial Testing Force
|
10kgf (98N）
|
3kgf (29.42N）
|
10kgf (98N）
|
|
All Testing Force
|
60kgf (588N),
100kgf (980N),
150kgf (1471N)
|
15kgf(147.1N),
30kgf(294.2N),
45kgf(441.3N)
|
60kgf (588N),
100kgf (980N),
150kgf (1471N)
|
|
Indication of Hardness Value
|
Dial
|
||
|
Duration Time
|
1~60sec
|
||
|
Overall Dimension
|
520×240×700mm(L×W×H)
|
||
|
Net Weight
|
80kg
|
||
|
Max Height of Speciment
|
170mm
|
||
|
Max depth of speciments
|
165mm
|
||
|
Power Supply
|
AC220V±5%，50~60Hz
|
||
|
Carried Standard
|
GB/T230(1.2) Chinese Standard
|
||
|
Standard Accessories
|
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table, HRC and HRB Hardness Blocks , Power Cable, etc.
|
Diameter 3.175, 6.35, 12.7mm Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table, 4 pcs Hardness Blocks , Power Cable
|
|
