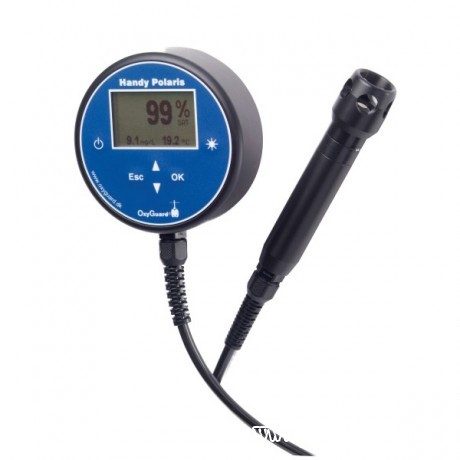

PARTECH Handy Polaris Portable Dissolved Oxygen Monitor

Harga :

CALL

Merk :

PARTECH

Pengiriman :

3 hari sejak pembayaran

Lokasi :

Jawa Barat - Bekasi

Dilihat :

178 Kali

Update Terakhir :

01-09-2016 10:34

Dapatkan Spesifikasi Harga PARTECH Handy Polaris Portable Dissolved Oxygen Monitor Produk Terbaik dari Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical

Detail Produk

Physical

Dimensions (hxwxd)

Monitor: 98mm Diameter x 36 mm

Weight

0.5 kg

Protection Class

Electronics: IP65
Sensor: IP68 to 5 metres

Enclosure Material

Polyoxymethylene (POM)

Cable Entry

Integral Cable Gland

Cable Lenght

3 metres standard, 100 metre maximum

Electrical

Power Supply

Standard PP9, 9V Battery

Battery Life

Approximately 2 years with 1 hour's use per day, 5 months with 8 hours per day

Environmental Data

Operating/Storage Temperature

Monitor: -20 to 60ºC
Sensor: -5 to 45ºC

Location

Portable Indoor/Outdoor

User Interface

Display

Graphical providing 3 1/2 digit Display

Setup

via 6 Button Membrane Keypad

Self Checking

Power Up check of Probe Function, Electronic Function, Cable and Battery Condition

Units of Measurement

mg/l, ppm, %Sat

Measurement Characteristics
Dissolved Oxygen Range	0-60 mg/l (ppm), 0-600 %Sat
Principal of Operation	Galvanic Cell, Self-Polarising, Self Temperature Compensating
Accuracy	Better than +/- 1% of measured value
Repeatability	Better than +/- 0.5% of measurement
Response Time	90% of end value in less than 20 seconds in water
Temperature Range	-5 to 45°C
Temperature Accuracy	+/- 0.2°C
Salinity Compensation	0-59 ppt - manually set
Temperature Compensation	Automatic
Barometric Pressure Compensation	Automatic
