| Physical | |
|---|---|

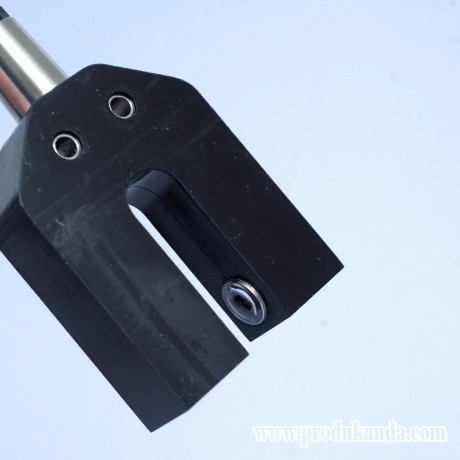

| Dimensions (hxwxd) | IR100C: 95 x 160 x 25 mm IR40C: 95 x 100 x 25 mm IR15C: 95 x 75 x 25 mm IR8C: 95 x 75 x 25 mm |
| Weight | 0.25 to 0.35 kg |
| Protection Class | IP68 |
| Enclosure Material | Black Epoxy Resin |
| Cable Entry | via Integral Cable Gland |
| Cable Length | 10 metres standard ,100 meters maximum |
| Electrical | |
| Power Supply | 12 VDC |
| Output Signal | 0-5mA Shallow 'S' shaped curve will need linearisation against actual site samples prior to use |
| Environmental Data | |
| Operating Temperature | 0 to 40ºC |
| Storage Temperature | 0 to 50°C |
| Location | Indoor/Outdoor |
