| Physical | |
|---|---|

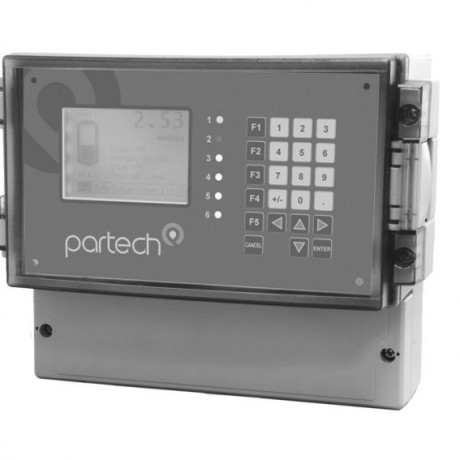

| Dimensions (hxwxd) | Transmitter: 235 x 184 x 120 mm Transducer: Ø78 mm x 185 mm long |
| Weight | 1 kg |
| Protection Class | Transmitter: IP65 Transducer: IP68 |
| Enclosure Material | Transmitter: Polycarbonate, Flame Resistant to UL94-5V Transducer: Black Valox 357 with a 316 Stainless Steel Wiper Blade and Shaft |
| Cable Entry | Knockouts for 5x M20, 1x M16 in base and 4x PG11 at rear |
| Electrical | |
| Power Supply | 100 to 240 VAC 50/60 Hz 22 to 28 VDC |
| Power Rating | 14 W maximum, typcially 11W |
| Transducer Cable Length | 10 metres standard, 200 metres maximum |
| Environmental Data | |
| Operating/Storage Temperature | -20 to 50ºC |
| Location | Indoor/Outdoor |
| User Interface | |
| Display | 192 x 128 pixel illuminated graphical dispplay |
| Keypad | Integral Keypad with menu navigation keys |
| Units of Measurement | %age Depth |
| Output Signals | |
| Analogue Outputs | 2x 0/4-20 mA, max load 1000 ohm |
| Relays | 6 |
| Contacts | SPDT, 5A @ 240 VAC |
| Communication Bus | RS485 Modbus RTU/ASCII or Profibus DPV0 or V1 |
