| Physical | |
|---|---|
| Dimensions (hxwxd) | 185 x 215 x 95 mm |
| Weight | 1.4 kg |
| Protection Class | IP65 |
| Enclosure Material | ABS |
| Cable Entry | 1x M20, 4x M16, 1x M12 |
| Cable Core Size | Max Conductor Size 2.5 mm² |
| Electrical | |
| Power Supply | 100 to 240 VAC 50/60 Hz |
| Power Rating | 30 W If more than two TurbiTechw² Sensors are to be used than an external higher rated power may be necessary |
| Environmental Data | |
| Operating/Storage Temperature | -20 to 60ºC, 0-95% Relative Humidity, Non-Condensing |
| Location | Indoor/Outdoor |
| User Interface | |

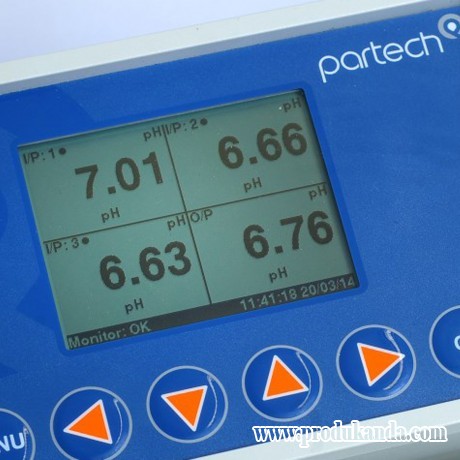

| Display | Graphical LCD, Black on White, Transreflective |
| Viewing Area | 78 x 59 mm |
| Back Light | On/Off/On after Keypress with user adjustable contract |
| Membrane Keypad | 6 Key, pillow embossed, 20 mm diameter |
