Power Quality Meter Model 8220 w/MA193-10-BK (1000A)
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
05-08-2016 14:23
Dapatkan Spesifikasi Harga
Power Quality Meter Model 8220 w/MA193-10-BK (1000A) Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk

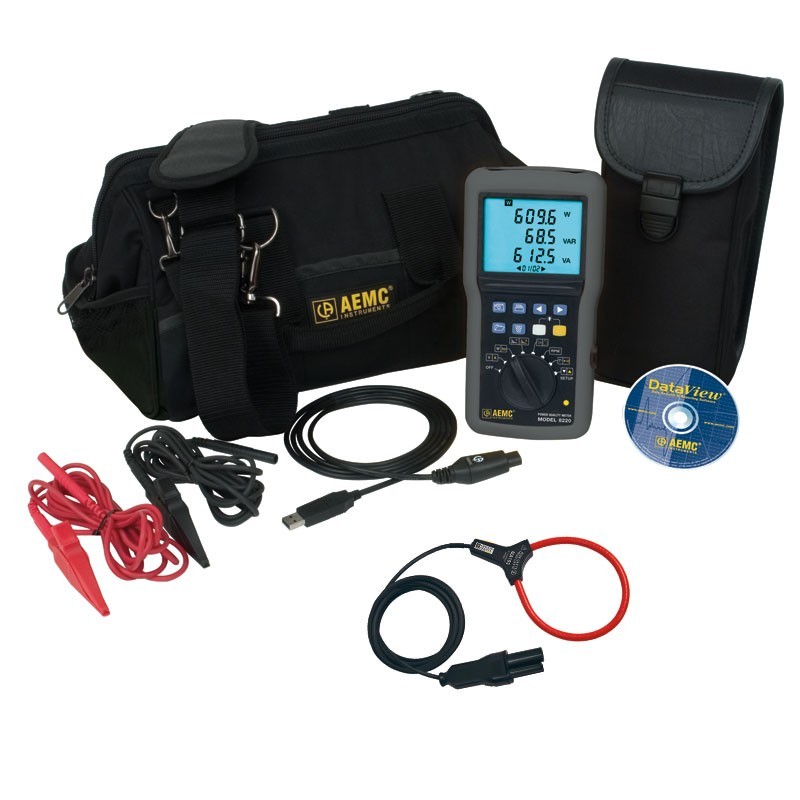

AEMC 8220 w/MA193-10-BK Power Quality Meter Model 8220 w/MA193-10-BK (1000A)
- Measures up to 660Vrms or VDC
- Measures up to 6500AAC or 1400ADC (probe dependent)
- Displays Min, Max and Avg Volts and Amps, Crest Factor, Peak and K-Factor
- Calculates and displays Watts, VARs and VA, Power Factor and Displacement Power Factor for single-phase and balanced three-phase
- Displays THD for voltage and current
- Displays individual harmonic values for Volts and Amps through the 50th harmonic
- Captures and displays inrush current phase rotation and RPM
- Displays temperature in °F or °C
- Displays resistance up to 2000Ω and conducts continuity and diode tests
- Stores up to nine complete sets of readings for all volt, amp, power, harmonics and other measurements
- Configurable fromDataView® software or front panel
- Includes DataView® software free for data download and storage, real-time waveform display, analysis and report generation
| Shipping Weight |
12.0000 |
| Manufacturer |
AEMC |
| MPN |
8220 w/MA193-10-BK |
| Manufacturer Warranty |
1Year |
