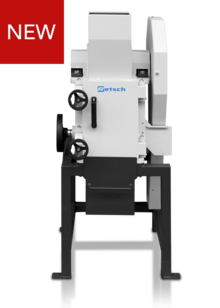

RETSCH Jaw Crusher BB 400 XL
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
19-07-2016 10:46
Dapatkan Spesifikasi Harga
RETSCH Jaw Crusher BB 400 XL Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
Product Advantages
- high crushing ratio
- front door facilitates cleaning
- infinite/continuous gap width setting
- overload protection
- wide range of materials for contamination free grinding
- no-rebound feed hopper, removable
- sample collector with safety switch
- collecting receptacle with outlet for continuous operation
- connector for dust extraction
- special version with automated sorting of undersize (3 fractions) and oversize (1 fraction)
Features
| Applications |
coarse and pre-crushing |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, tough |
| Size reduction principle |
pressure |
| Material feed size* |
< 220 x 90 mm |
| Final fineness* |
< 2 mm |
| Material of grinding tools |
manganese steel, tungsten carbide, Stahl für schwermetallfreie Zerkleinerung |
| Jaw width |
220 x 90 mm |
| Gap width setting |
0 - 30 mm |
| Gap width display |
scale |
| Zero point adjustment |
yes |
| Wearing rate display |
yes, up to minus 10 mm |
| Removable hopper |
yes |
| Dust extraction unit |
yes |
| Central lubrication |
optional |
| Process line version |
optional |
| Collector capacity |
10 l |
| Base frame |
vario frame (adjustable for continous crushing) |
| Drive |
3-phase motor |
| Drive power |
5.5 kW |
| Electrical supply data |
different voltages |
| Power connection |
3-phase |
| Protection code |
IP 55 |
| W x H x D closed |
695 x 1399 x 719 mm |
| Net weight |
~ 400 kg |
| Standards |
CE |
