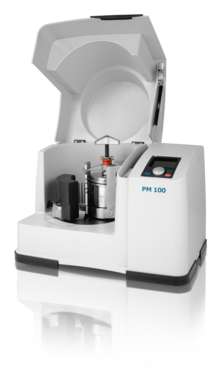

RETSCH Planetary Ball Mill PM 100

Harga :
CALL
Merk :
RETSCH
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
186 Kali
Update Terakhir :
19-07-2016 11:51

Dapatkan Spesifikasi Harga RETSCH Planetary Ball Mill PM 100 Produk Terbaik dari Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical

Detail Produk



Product Advantages

  • powerful and quick grinding down to nano range
  • reproducible results due to energy and speed control
  • suitable for long-term trials
  • 2 different grinding modes (dry and wet)
  • optional pressure and temperature measuring system PM GrindControl
  • measurement of energy input
  • wide range of materials for contamination free grinding
  • Safety Slider for safe operation
  • perfect stability on lab bench thanks to FFCS technology
  • innovative counter weight and imbalance sensor for unsupervised operation
  • comfortable parameter setting via display and ergonomic 1-button operation
  • automatic grinding chamber ventilation
  • 10 SOPs can be stored
  • programmable starting time
  • power failure backup ensures storage of remaining grinding time
  • jars with O-type sealing for safe operation, pressure tight

Features

Applications pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying
Field of application agriculture, biology, Chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material soft, hard, brittle, fibrous - dry or wet
Size reduction principle impact, friction
Material feed size* < 10 mm
Final fineness* < 1 µm, for colloidal grinding < 0.1 µm
Batch size / feed quantity* max. 1 x 220 ml, max. 2 x 20 ml with stacked grinding jars
No. of grinding stations 1
Speed ratio 1 : -2
Sun wheel speed 100 - 650 min-1
Effective sun wheel diameter 141 mm
G-force 33.3 g
Type of grinding jars "comfort", optional areation covers, safety closure devices
Material of grinding tools hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide, silicon nitride, zirconium oxide
Grinding jar sizes 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml
Setting of grinding time digital, 00:00:01 to 99:59:59
Interval operation yes, with direction reversal
Interval time 00:00:01 to 99:59:59
Pause time 00:00:01 to 99:59:59
Storable SOPs 10
Measurement of input energy possible yes
Interface RS 232 / RS 485
Drive 3-phase asynchronous motor with frequency converter
Drive power 750 W
Electrical supply data different voltages
Power connection 1-phase
Protection code IP 30
Power consumption ~ 1250W (VA)
W x H x D closed 630 x 468 x 415 mm
Net weight ~ 86 kg
Documentation Operation & Application Video
Standards CE
Patent / Utility patent Counter weight (DE 20307741), FFCS (DE 20310654), SafetySlider (DE 202008008473)
