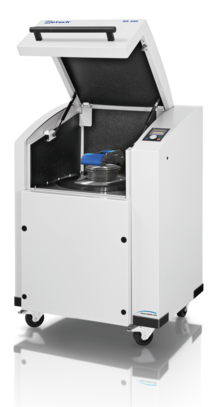

RETSCH Vibratory Disc Mill RS 200
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
19-07-2016 11:28
Dapatkan Spesifikasi Harga
RETSCH Vibratory Disc Mill RS 200 Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
Product Advantages
- reproducible results due to "Stabilized-Plane-Drive" (avoids tumbling of the grinding set)
- variable speed 700 - 1,500 min-1
- extremely short grinding time
- agate and tungsten carbide recognition for automatic speed reduction
- 10 SOPs can be stored
- no sample loss thanks to optimum o-ring seal
- wide range of materials for contamination free grinding
- noise-insulated grinding chamber
- new quick-action grinding set clamping device for convenient and safe tightening
- safety interlock
- easy 1-button operation with colored graphics display
- new carry handle
- new ergonomic design, heavy grinding sets can be inserted closer to the user´s body and slided into the machine, leading to less strenuous laboratory work especially for high throughput users
Features
| Applications |
size reduction, mixing, triturating |
| Field of application |
construction materials, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, fibrous |
| Size reduction principle |
pressure, friction |
| Material feed size* |
< 15 mm |
| Final fineness* |
< 20 µm |
| Batch size / feed quantity* |
15- 250 ml depending on size of grinding set |
| Speed at 50 Hz (60 Hz) |
700 - 1,500 min-1, continuously adjustable |
| Material of grinding tools |
hardened steel, tungsten carbide, agate, zirconium oxide, steel 1.1740 (for heavy-metal free grinding) |
| Grinding jar sizes |
50 ml / 100 ml / 250 ml |
| Setting of grinding time |
digital, 00:01 to 99:59 |
| Storable SOPs |
10 |
| Drive |
3-phase asynchronous motor with frequency converter |
| Drive power |
1.5 kW |
| Electrical supply data |
different voltages |
| Power connection |
1-phase |
| Protection code |
IP 40 |
| W x H x D closed |
836 x 1220 x 780 mm |
| Net weight |
~ 210 kg (without grinding set) |
| Standards |
CE |
