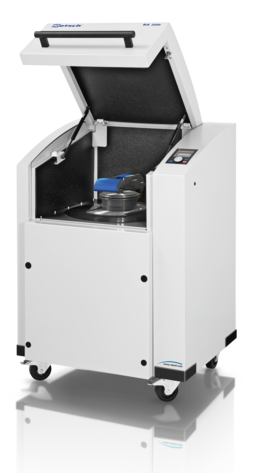

With its robust design, the RS 200 has proven to be ideal for use in the building materials sector (cement), in geology, mineralogy, metallurgy and in power plants. Due to the high end fineness and speed the RS 200 is the perfect mill when it comes to preparing samples for spectral analysis.
Application Examples
cement, cement clinker, ceramics, coal, coke, concrete, corundum, electronic components, glass, metal oxides, minerals, ores, plant materials, silicates, slag, soils, ... continue to application database
Product Advantages
- reproducible results due to "Stabilized-Plane-Drive" (avoids tumbling of the grinding set)
- variable speed 700 - 1,500 min-1
- extremely short grinding time
- agate and tungsten carbide recognition for automatic speed reduction
- 10 SOPs can be stored
- no sample loss thanks to optimum o-ring seal
- wide range of materials for contamination free grinding
- noise-insulated grinding chamber
- new quick-action grinding set clamping device for convenient and safe tightening
- safety interlock
- easy 1-button operation with colored graphics display
- new carry handle
- new ergonomic design, heavy grinding sets can be inserted closer to the user´s body and slided into the machine, leading to less strenuous laboratory work especially for high throughput users
Features
| Applications | size reduction, mixing, triturating |
| Field of application | construction materials, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, fibrous |
| Size reduction principle | pressure, friction |
| Material feed size* | < 15 mm |
| Final fineness* | < 20 µm |
| Batch size / feed quantity* | 15- 250 ml depending on size of grinding set |
| Speed at 50 Hz (60 Hz) | 700 - 1,500 min-1, continuously adjustable |
| Material of grinding tools | hardened steel, tungsten carbide, agate, zirconium oxide, steel 1.1740 (for heavy-metal free grinding) |
| Grinding jar sizes | 50 ml / 100 ml / 250 ml |
| Setting of grinding time | digital, 00:01 to 99:59 |
| Storable SOPs | 10 |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 1.5 kW |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 40 |
| W x H x D closed | 836 x 1220 x 780 mm |
| Net weight | ~ 210 kg (without grinding set) |
| Standards | CE |
