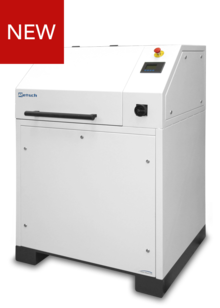

RETSCH Vibratory Disc Mill RS 300 XL
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Update Terakhir :
19-07-2016 11:29
Dapatkan Spesifikasi Harga
RETSCH Vibratory Disc Mill RS 300 XL Produk Terbaik dari
Andalan Prima General Supplier,Test & Measuring Instrument,Laboratory Equipment , Glassware & Chemical
Detail Produk
Product Advantages
- reproducible results and homogeneous samples thanks to universal drive shaft (3D vibration of grinding sets)
- speed: 912 min-1
- short grinding times
- autoreverse function (left/right rotation)
- programmable interval function (start/ stop automatic)
- wide range of materials for contamination-free grinding
- grinding jar volumes from 100 ml up to 2,000 ml
- closed and noise-insulated grinding chamber
- pneumatic grinding-jar clamping (with air-pressure) for convenient and safe handling
- additional security feature: mill only starts if the pneumatic pressure is correct
- optional Autolifter for ergonomic lifting of heavy grinding sets
Features
| Applications |
size reduction, mixing, triturating |
| Field of application |
construction materials, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, fibrous |
| Size reduction principle |
pressure, friction |
| Material feed size* |
< 20 mm |
| Final fineness* |
< 20 µm |
| Batch size / feed quantity* |
35 - 2,000 ml |
| Speed at 50 Hz (60 Hz) |
912 min-1 |
| Material of grinding tools |
chrome steel, hardened steel, tungsten carbide, zirconium oxide, steel 1.1740 (for heavy-metal free grinding) |
| Grinding jar sizes |
100 ml / 800 ml / 1,000 ml / 2,000 ml |
| Setting of grinding time |
digital, 00:00 to 59:59 |
| Drive |
3-phase motor |
| Drive power |
2.2 kW |
| Electrical supply data |
different voltages |
| Power connection |
3-phase |
| Protection code |
IP 40 |
| W x H x D closed |
1400 x 1460 x 730 mm |
| Net weight |
~ 415 kg (without grinding set) |
| Standards |
CE |
