■4 digits 9999 count & 3-5/6 digits 6000count■Maximum DC/AC voltage measurement resolution 0.01mV■Dual Display shows voltage/current and its frequency, andAC components and DC components of voltage/current■High speed bar graph■Frequency measurement (AC sine wave only)■Logic frequency measurement, duty cycle measurement■Data hold, Range hold■Relative value■Auto power saving mode (30min.) (cancelable)■Optical Link USB interface (optional)Display : numeral display 9999 & 6000, bar graph 41 segmentsSampling rate : 5 times/sec., 60 times/sec. for bar graphBattery life : Approx. 60h (manganese battery) at DCV range
Optional Assesories
Software : PC Link7
Optical PC link cable : KB-USB7
Clamp probe : CL-20D, CL-22AD, CL33DC
Temperature probe : T-300PC (PC Link software is necessary.)
K type adapter : K-AD
Test lead : TL-21M, TLF-120
Carrying case : C-PC7
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
SAFETY
IEC61010-1:2001, IEC61010-31:2008 CAT.III 600V Max./CAT. II 1000V Max.EN61326-1:2006

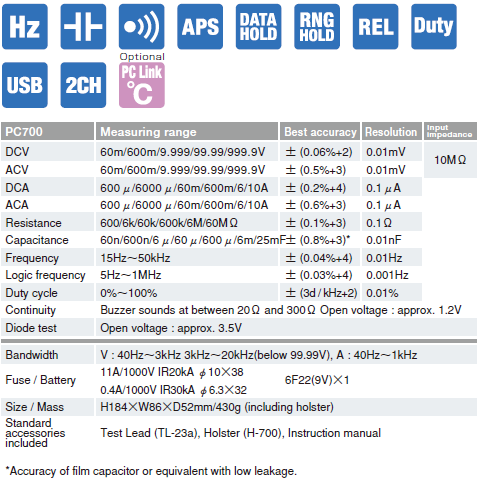

SPECIFICATION仕様
