■4-1/2 digits 11000 count
■0.28% best accuracy
■AC True RMS
■Thermo plastic elastomer, high resistance against drop shock
■Maximum DC/AC 11A can be measured
■Continuity buzzer and LED
■Data hold, Range hold, Relative functio
■Auto power off function (30 min.)
■Optical link USB interface (optional)
Display : numeral display 11000
Sampling rate : 4 times / sec.
AC frequency bandwidth : 45〜100Hz(110mV range), 45〜500Hz(1.1V range), 45〜1kHz(11V range and avobe, ACA
- Optional Assesories
Software : PC Link 7 (This model works with PC Link 7 only.)
Clamp probe : CL-20D, CL-22AD, CL33DC,
Temperature probe : T-300PC (PC Link software is necessary.)
Optical PC link cable : KB-USB773 Test lead : TLF-120
Carrying case : C-77, C-77H
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
Safety
-
IEC61010-1 (EN61010-1) 2001-02 CAT.III 600V Max. / CAT.II1000V Max.

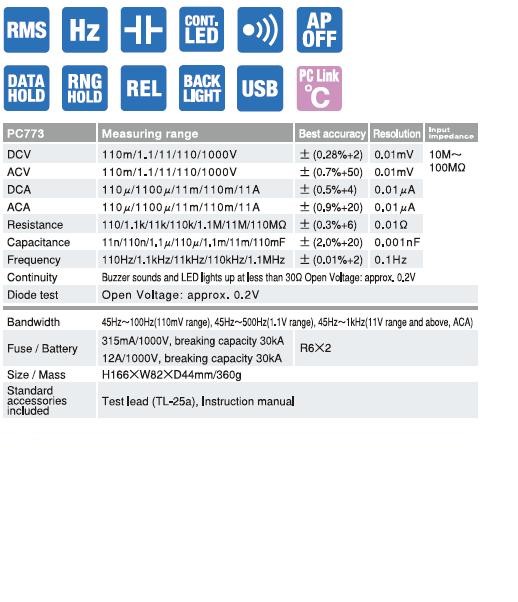

Specification仕様
Download this product's manual
